Belt conveyor Economical middle drive double groove profile (pulley diameter 30mm)

Belt conveyor Economical middle drive double groove profile (pulley diameter 30mm)

Conditional screening:
Belt conveyor
economical
Intermediate drive
30mm
Double groove section

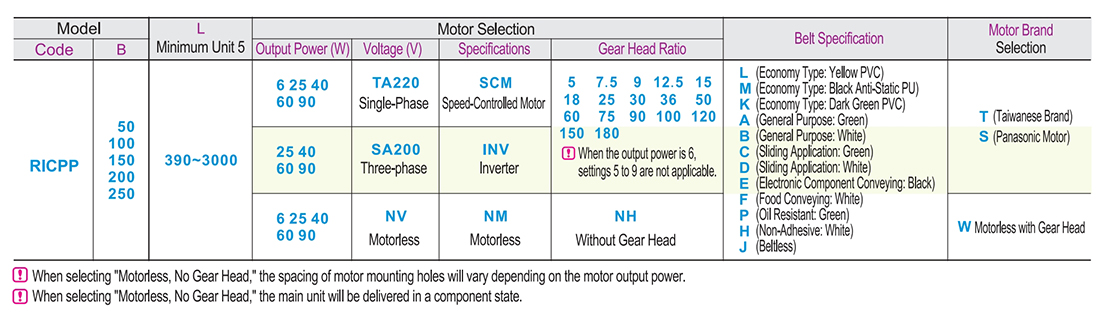

Product model：
Code
Please select
RICPP
B
Please select
50 100 150 200 250
Output power (W)
Please select
6 25 40 60 90
Voltage (V)
Please select
TA220 ST200 NV
specification
Please select
SCM INV NM
Gear head reduction ratio
Please select
5 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 NH
Belt specification
Please select
L M N K A B C D E F P H J
Motor brand
Please select
T S W
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Commodity evaluation
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

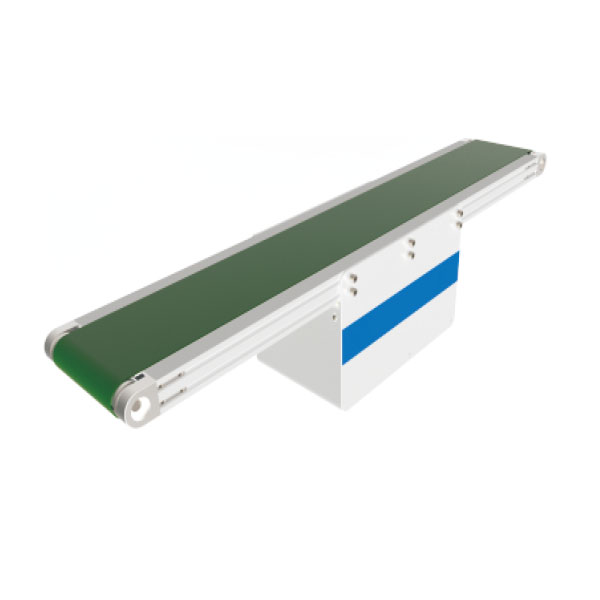

    Belt conveyor Economical middle drive double groove profile (pulley diameter 30mm)Texture map
    SSJ05

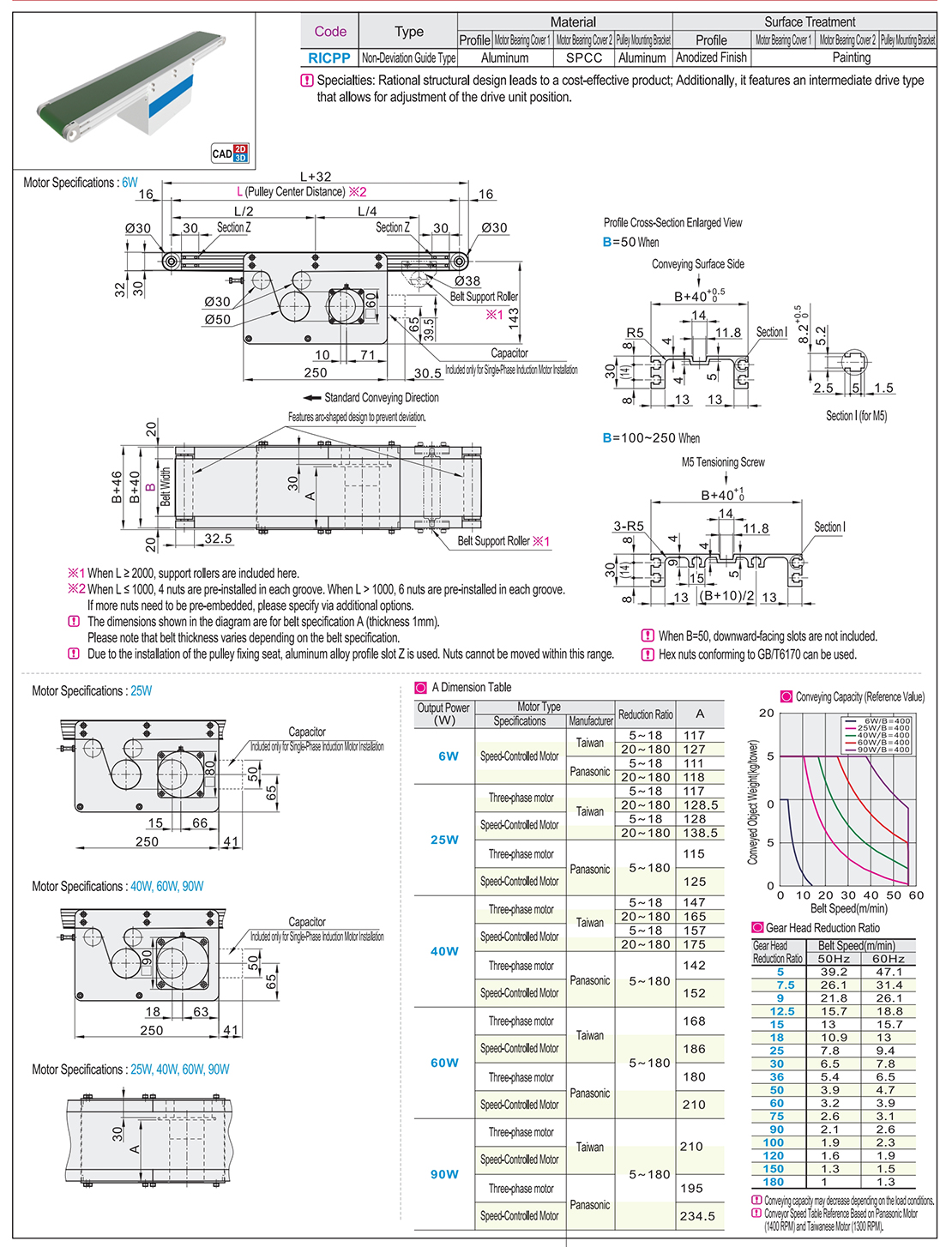

    Belt conveyor Economical middle drive double groove profile (pulley diameter 30mm)Parametric diagram1
  • Optional parameter diagram
  • No picture
