Air pressure with connecting block L-shaped end face through spacing specified type

Air pressure with connecting block L-shaped end face through spacing specified type

Conditional screening:
Air pressure with connecting block
L-shape
L-shaped end face penetration spacing specified type
A5052
Natural anodizing
Parameter selection：
Length of side
Please select
25X25 30X40 50X50
Product model：
Code
Please select
PALDQ PALDR PALDS
Lateral face number
Please select
2K 3K 4K 5K 6K
Q
Please select
1 3M 4M 5 2 1N 2N 3 4
R
Please select
1 2 5 1N 2N 4 3M 4M 3
G
Please select
1 3M 4M 5 2 1N 2N 3 4
K
Please select
1 3M 4M 5 2 1N 2N 3 4
Spacing P
[15~60/1]
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Commodity evaluation
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

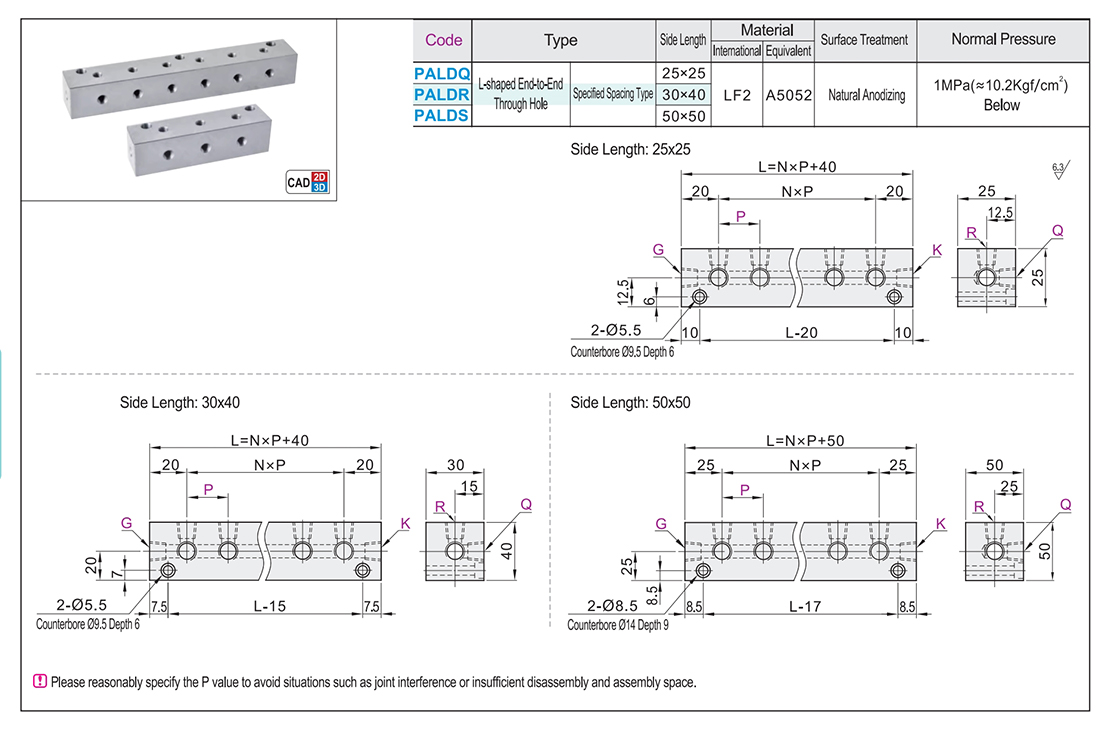

    Air pressure with connecting block L-shaped end face through spacing specified typeTexture map
    选型表

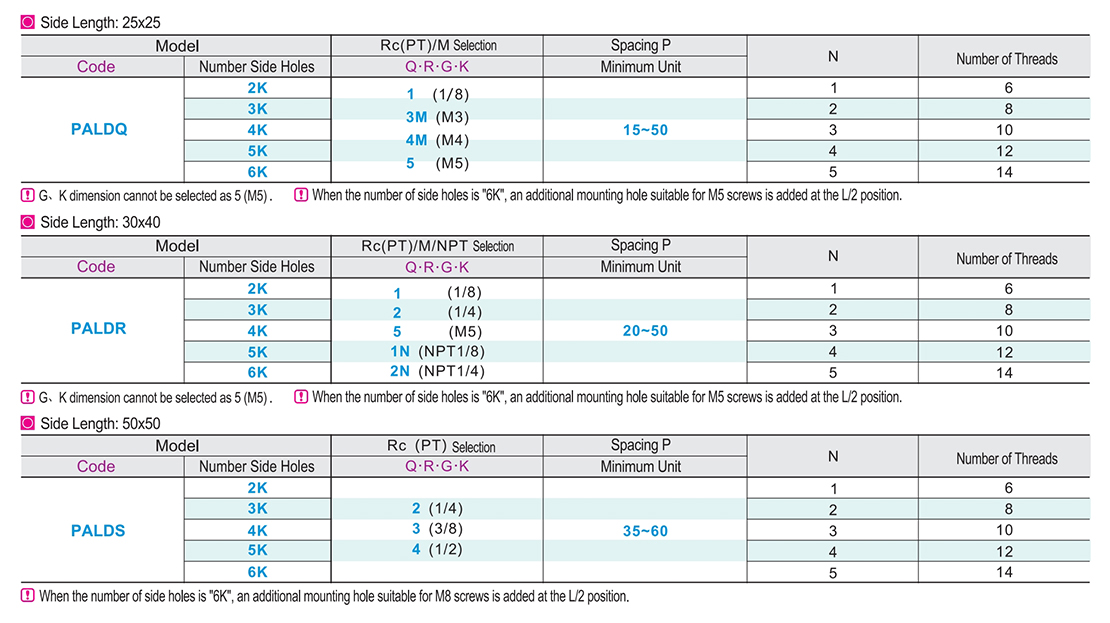

    Air pressure with connecting block L-shaped end face through spacing specified typeParametric diagram1
    选型表
    • No picture
    • No video application is available for this model
