Both ends of the shaft step with retaining ring groove/both ends of the internal thread type standard type

Conditional screening:
pivot
Double step
Parameter selection:
D tolerance
Please select
g6 h7 h9
P tolerance
Please select
g6 h7
material
Please select
S45C SUS304
Surface treatment
Please select
nigrescence No electrolytic nickel plating There is no
Shaft end shape
Please select
Shaft end is not machined Internal thread type at both ends
Shaft machining
Please select
Trough type with retaining ring Shaft body is not machined
Product model:
Code
Please select
NDACH NDACJ NDBAH NDBAJ NDBAK NDBBH NDBBJ NDBBK NDBCH NDBCJ NDBCK NDBDH NDBDJ NDBDK
D
Please select
6 8 10 12 13 15 16 17 18 20 22 25 30 35 40 50
M
Please select
3 4 5 6 8 10 12 16 20 24 30
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

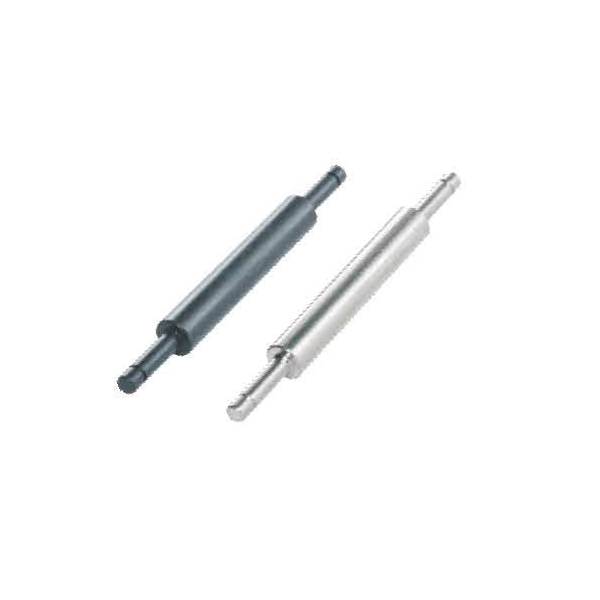

    Both ends of the shaft step with retaining ring groove/both ends of the internal thread type standard typeTexture map

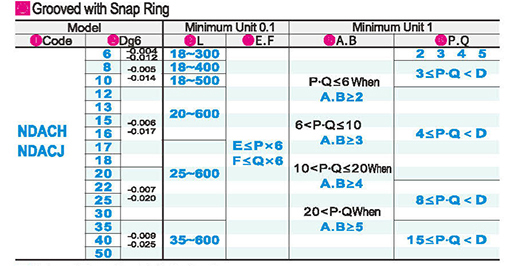

    选型表

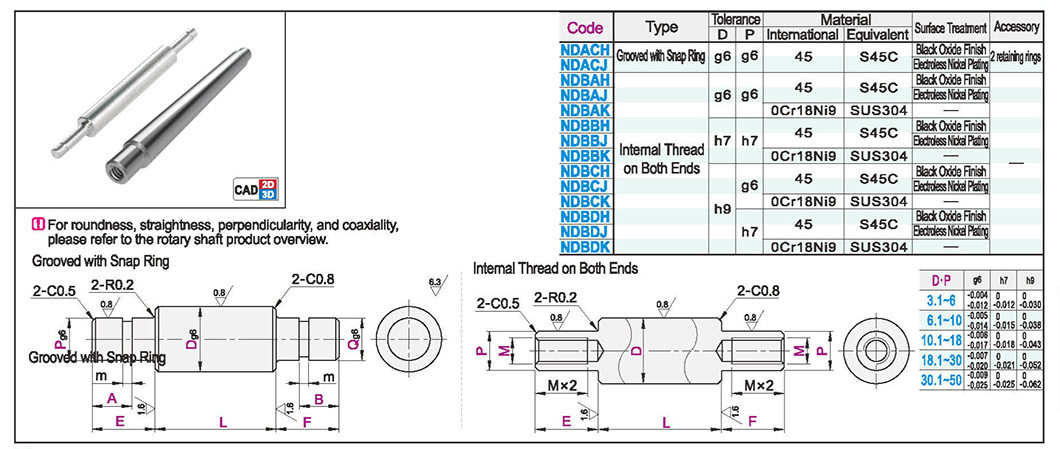

    Both ends of the shaft step with retaining ring groove/both ends of the internal thread type standard typeParametric diagram1

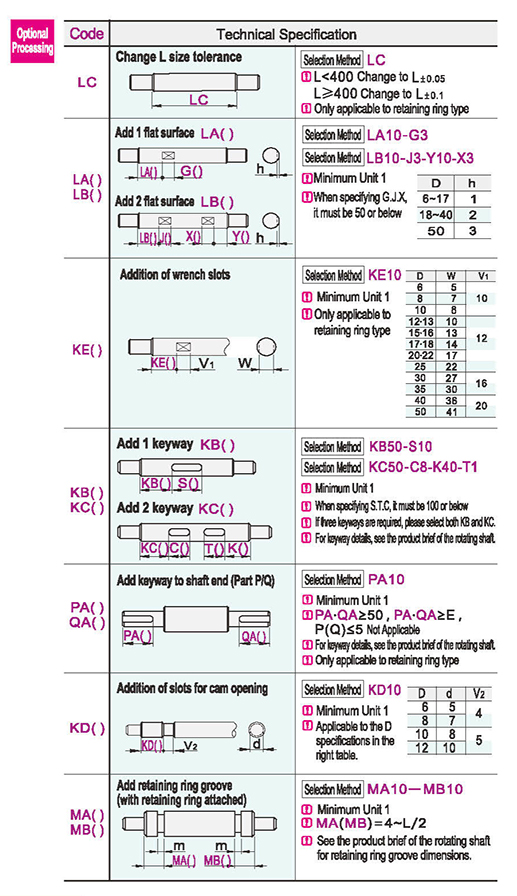

  • Optional parameter diagram
  • No picture
