Mechanical standard parts
/
Dowel/dowel bushing
/
Dowel pin head/small head taper Angle with shoulder Standard PLB size specified type

Dowel pin head/small head taper Angle with shoulder Standard PLB size specified type

Conditional screening:
Locating pin
PLB size specified type
Big head/small head cone type
Parameter selection：
Imported surface shape
Please select
Circular type Polygon type
material
Please select
SKS3 SUS304 SUS440C
Surface treatment
Please select
There is no Hard chrome plating
Product model：
Code
Please select
BDOGQ BDOGR BDOGS BDOGT BDOHQ BDOHR BDOHS BDOHT
D
Please select
2 3 4 5 6 8 10 12 13 16 20
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

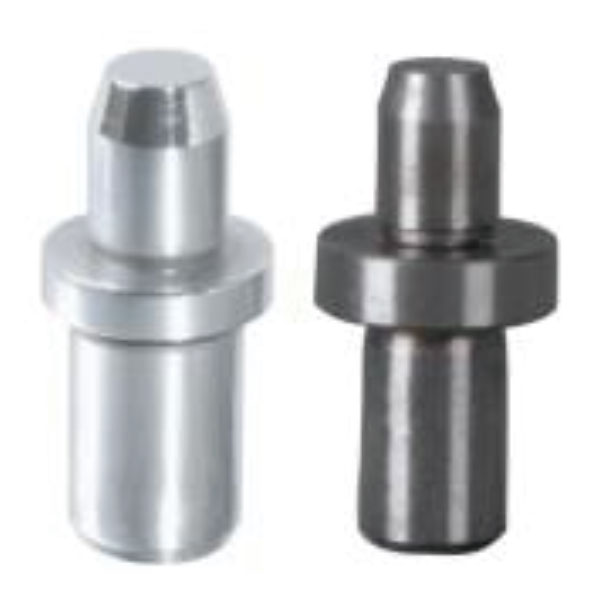

    Dowel pin head/small head taper Angle with shoulder Standard PLB size specified typeTexture map

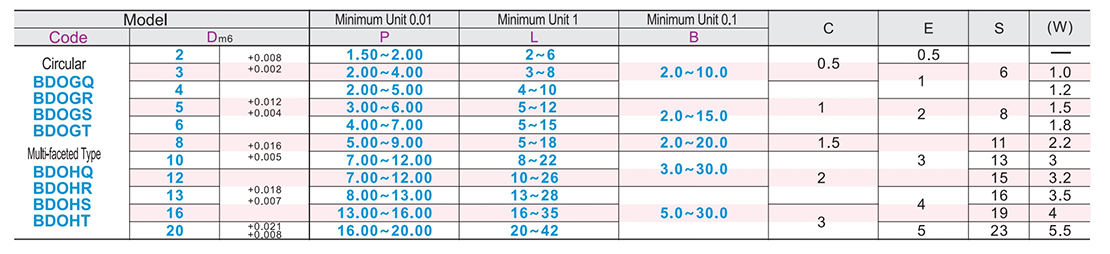

    选型表

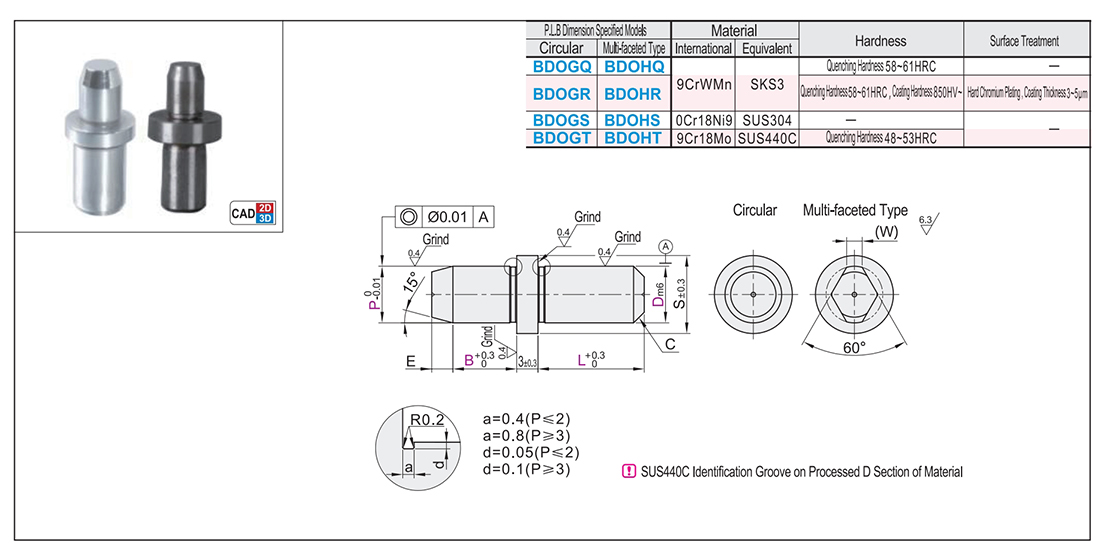

    Dowel pin head/small head taper Angle with shoulder Standard PLB size specified typeParametric diagram1

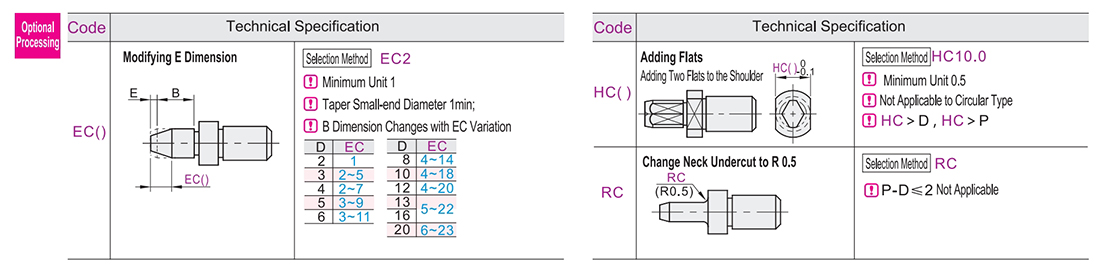

  • Optional parameter diagram
  • No picture
