CLASSIFICATION

Home page
/
Mechanical standard parts
/
Dowel/dowel bushing
/
Dowel pin small head conical tolerance selection Standard/internal thread type

Dowel pin small head conical tolerance selection Standard/internal thread type

Conditional screening:
Locating pin
Small head conical type
Parameter selection：
type
Please select
Tolerance selective type Standard type Tolerance select type internal thread type
material
Please select
SKS3 SUS304 SUS440C
Surface treatment
Please select
There is no Hard chrome plated + polished polishing
Product model：
Code
Please select
BAECQ BAECR BAECS BAECT BAEDQ BAEDR BAEDS BAEDT
D tolerance
Please select
m6 p6 g6 h7 a b
P tolerance
Please select
s m6 p6 g6 h7 a b
D
Please select
3 4 5 6 6T 8 8T 10 10T 12 12T 13 13T 16 16T 20 20T
R
Please select
15 5 10 20 25 30
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details

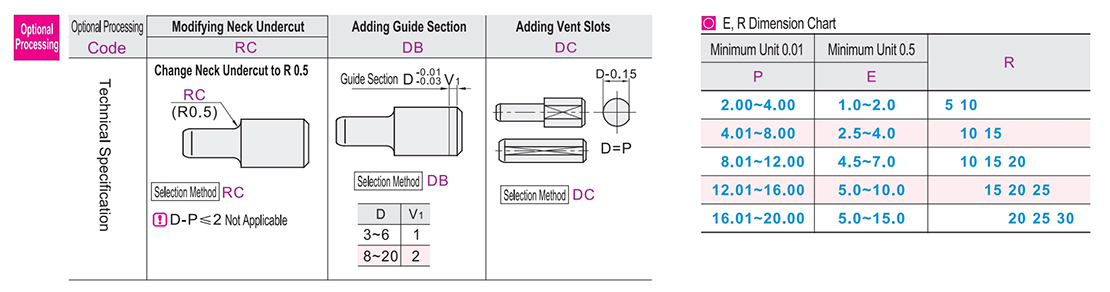

  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

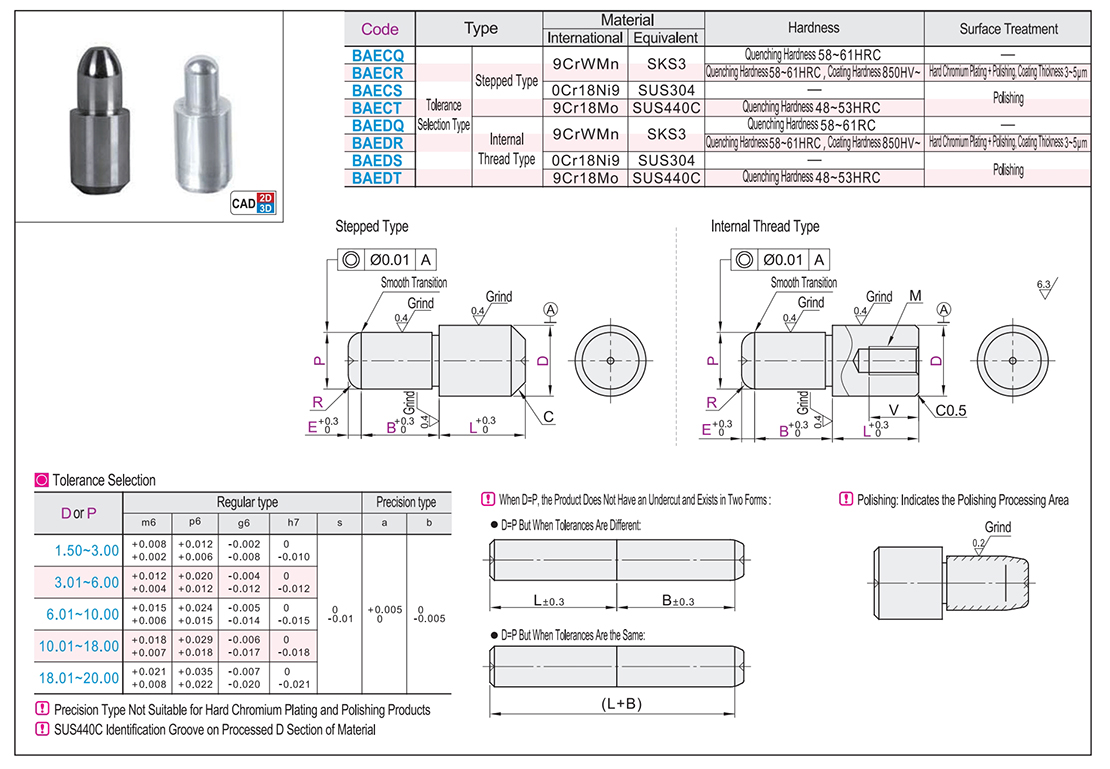

    Parametric diagram

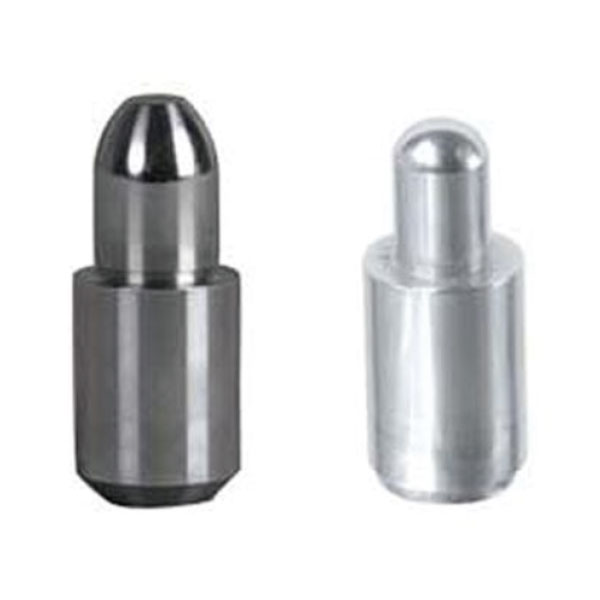

    Dowel pin small head conical tolerance selection Standard/internal thread typeTexture map
    选型表

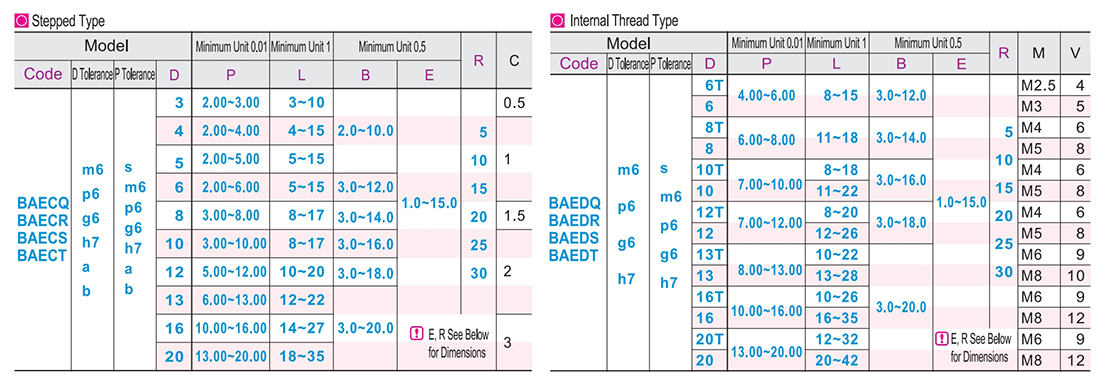

    Dowel pin small head conical tolerance selection Standard/internal thread typeParametric diagram1
