Flange type oil free sleeve copper alloy guide medium bore F7/ bore h7

Conditional screening:
Parameter selection:
Bush shape
Please select
Guided round flange type Leading opposite flange type Intermediate round flange type Middle opposite flange type
Inside diameter tolerance
Please select
F7
Outside diameter tolerance
Please select
h7
Product model:
Code
Please select
GWRTD GWRUE GWRVF GWRWG
d
Please select
8 10 12 13 16 20 25 30 35 40 50
L
Please select
20 25 30 35 40 50 60 70 80 100
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

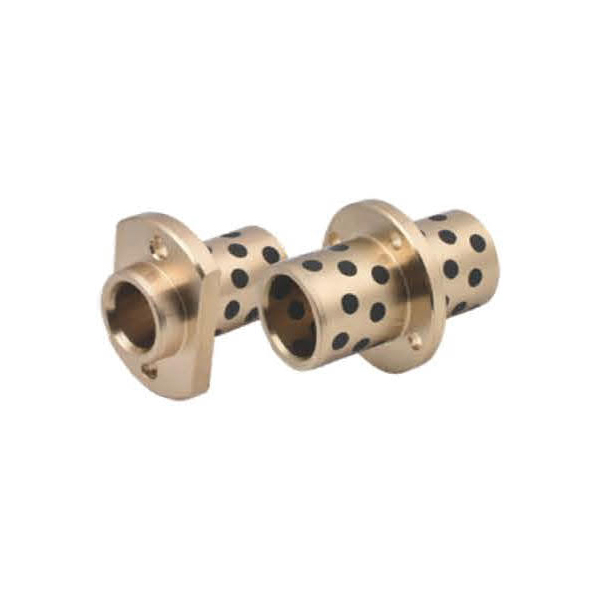

    Flange type oil free sleeve copper alloy guide medium bore F7/ bore h7Texture map
    选型表

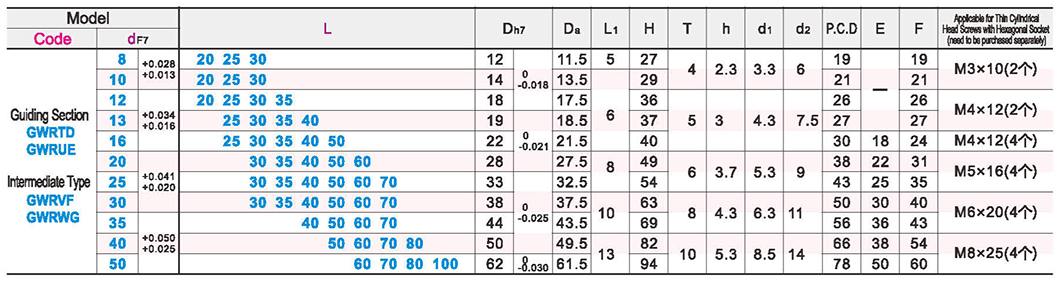

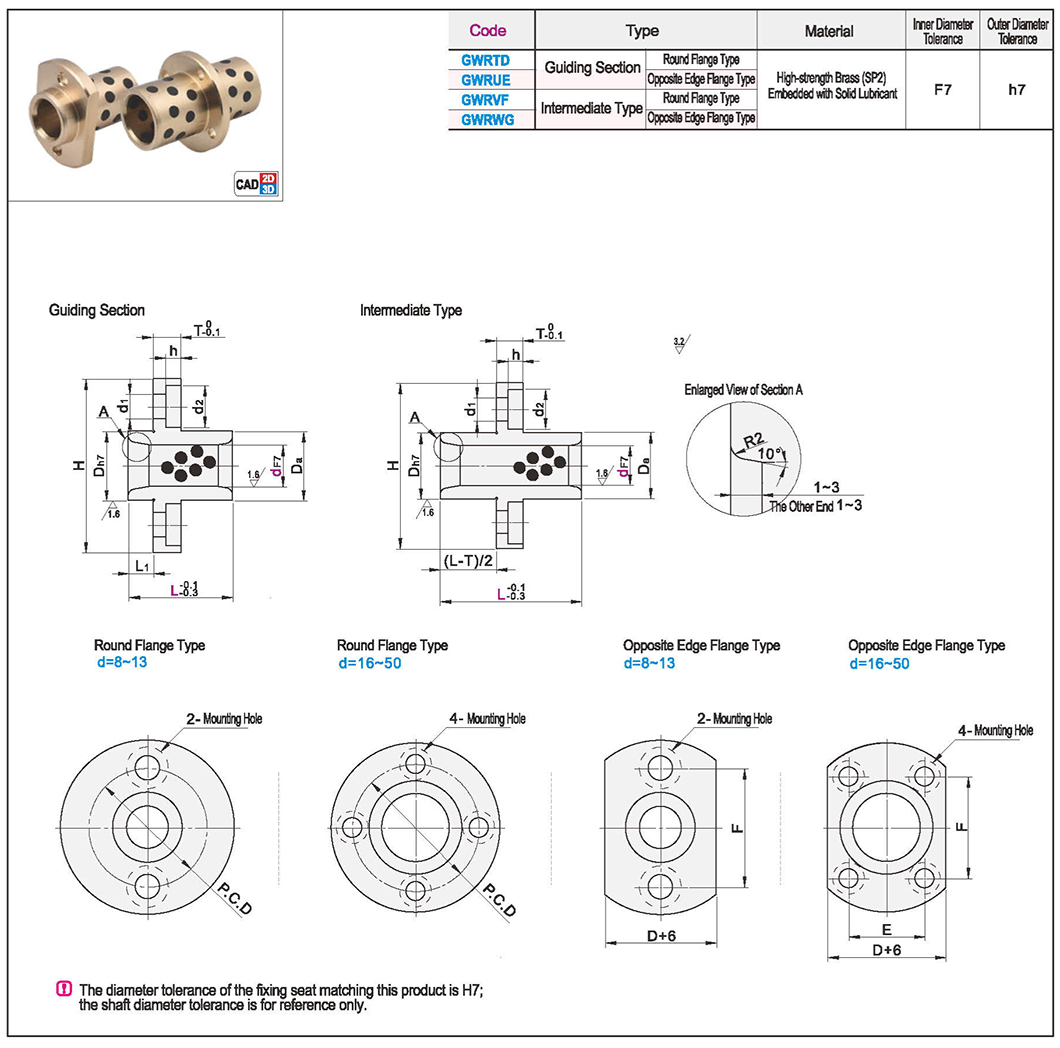

    Flange type oil free sleeve copper alloy guide medium bore F7/ bore h7Parametric diagram1
  • No picture
