Flat belt idler L=25~100 straight column type

Conditional screening:
Idler for flat belt
Parameter selection:
type
Please select
Straight column type: no flange type Straight column type: with flange type
Surface treatment
Please select
Natural anodizing -
Product model:
Code
Please select
VUJNV VUJNP VUJCV
D
Please select
15 20 25 30 35 40 50 60 80
d
Please select
5 6 8 10 12 15 20 25 30 35
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

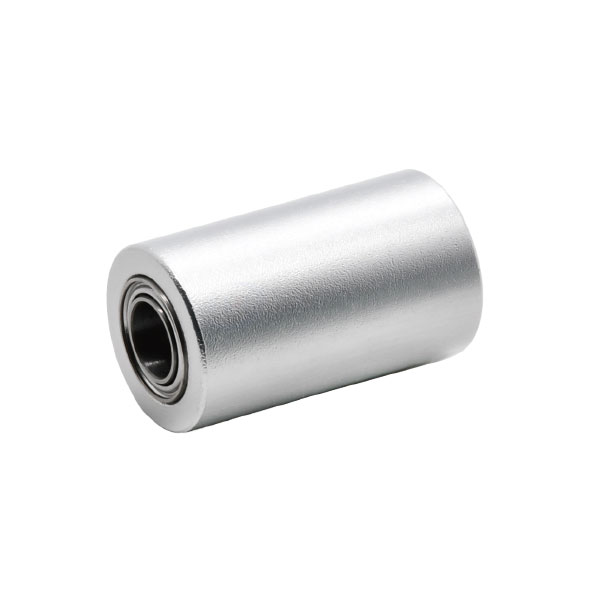

    Flat belt idler L=25~100 straight column typeTexture map
    TL

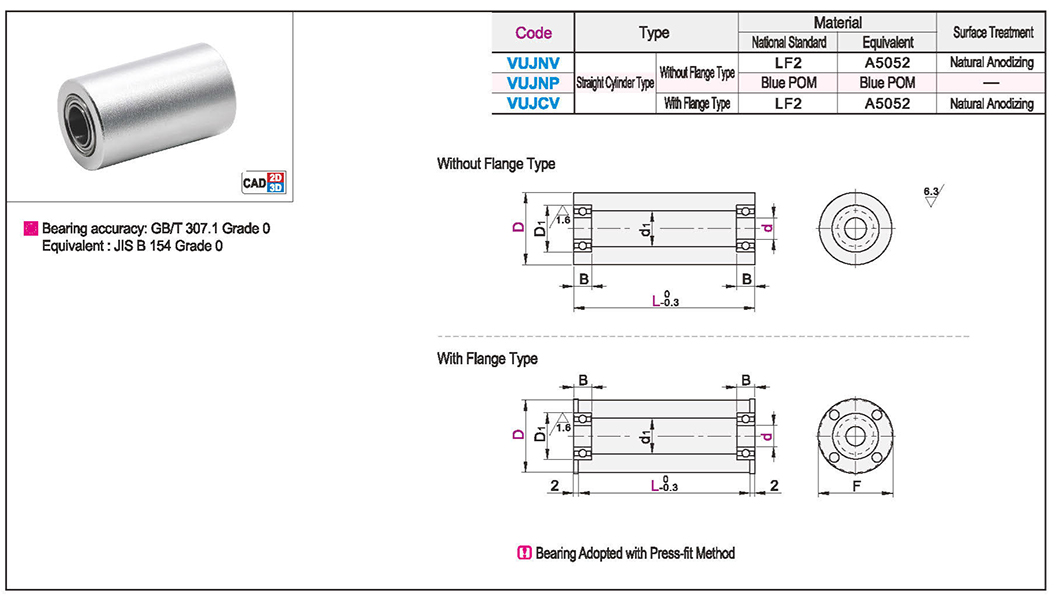

    Flat belt idler L=25~100 straight column typeParametric diagram1
  • No picture
