Flat belt pulley L=100~500 arc type/ribbed straight column type

Conditional screening:
Flat belt pulley
Parameter selection:
type
Please select
Circular arc type Ribbed straight column type
Surface treatment
Please select
No electrolytic nickel plating Natural anodizing
Body surface treatment
Please select
-
Product model:
Code
Please select
VUEDV VUEDN VUEDU VUEZV VUEZN VUEZU
D
Please select
30 35 40 50 60 80
N
Please select
8 10 K10 12 15 20 25 30 35
d
Please select
8 10 12 15 20 25 30 35
H
Please select
0.3 0.5 0.8 1 1.2
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

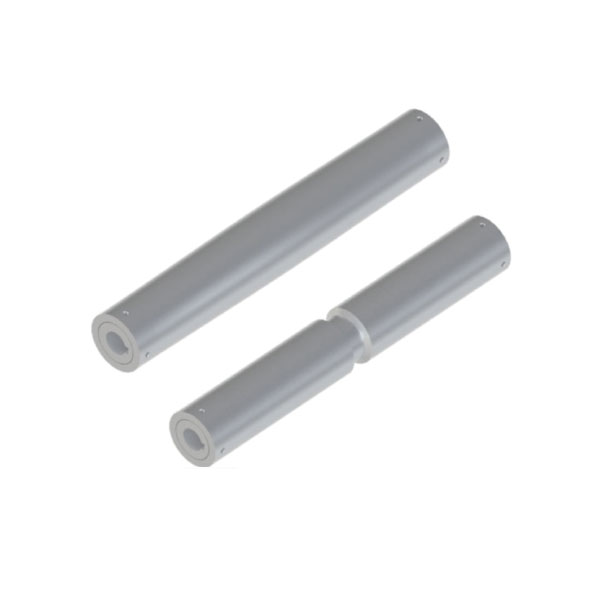

    Flat belt pulley L=100~500 arc type/ribbed straight column typeTexture map
    TL

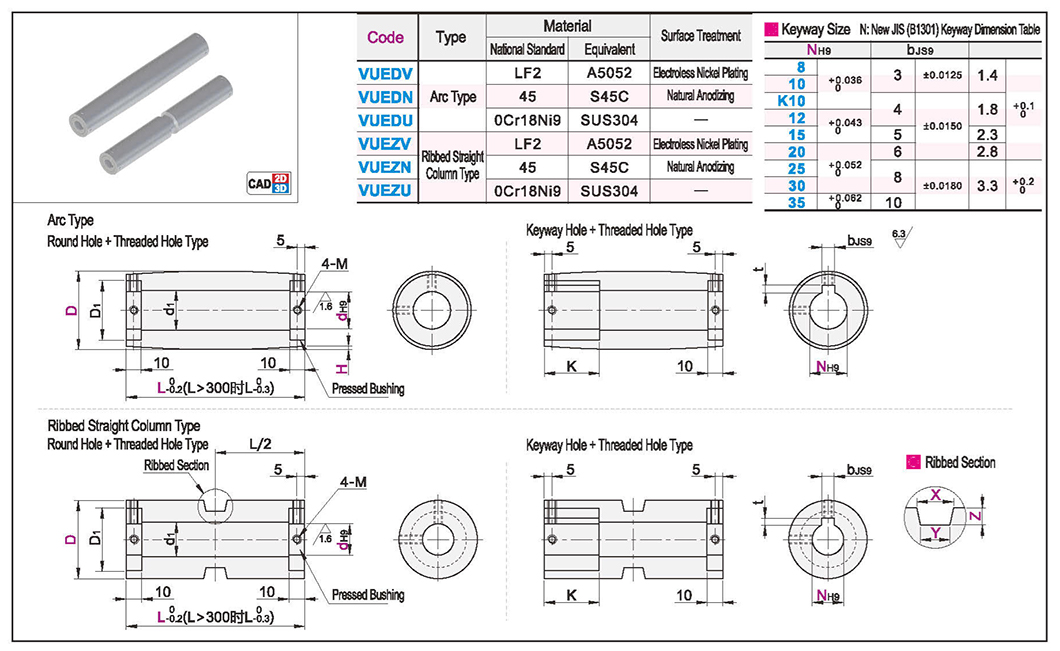

    Flat belt pulley L=100~500 arc type/ribbed straight column typeParametric diagram1
  • No picture
