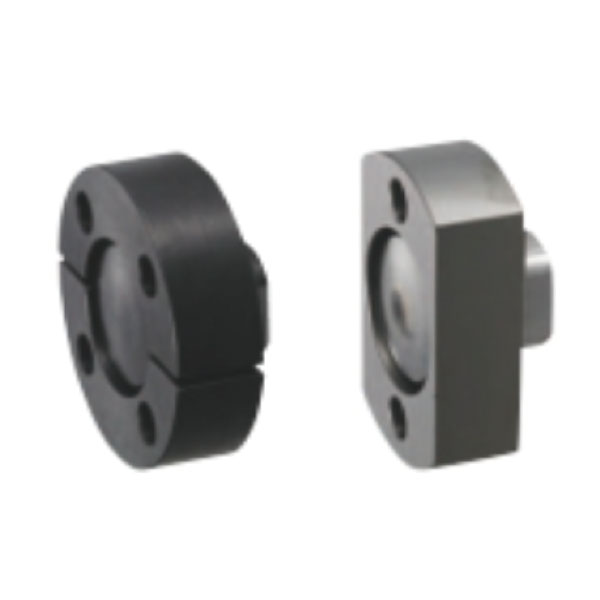

Floating joint (assembly) mounting flanges Standard/compact/cylinder fitting internal thread type

Conditional screening:
Floating joint
Parameter selection:
species
Please select
Floating joint
type
Please select
Normal form Compact type
Product shape
Please select
Round flange Round flange separate type Opposite flange type
material
Please select
S45C SUS440C
Product model:
Code
Please select
DQOCH DQOCW DQODH DQODW DQOEH DQOEW DQOFH DQOFW DQOGH DQOGW DQOHH DQOHW
M
Please select
3 4 5 6 8 10 12 14 16 18 20 22 24 26 30 36
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

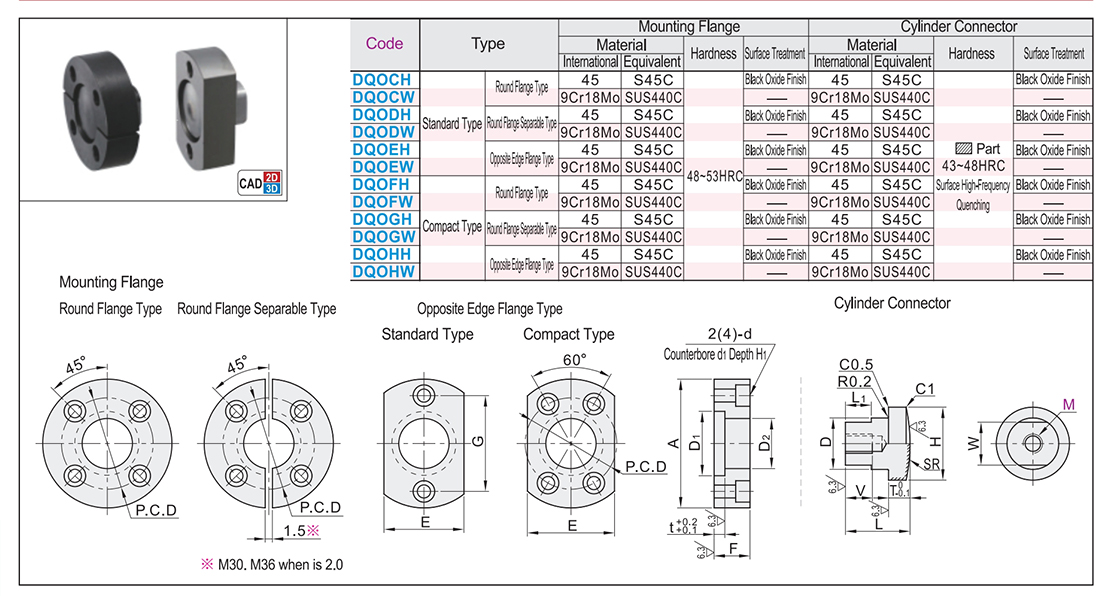

    Floating joint (assembly) mounting flanges Standard/compact/cylinder fitting internal thread typeTexture map
    选型表

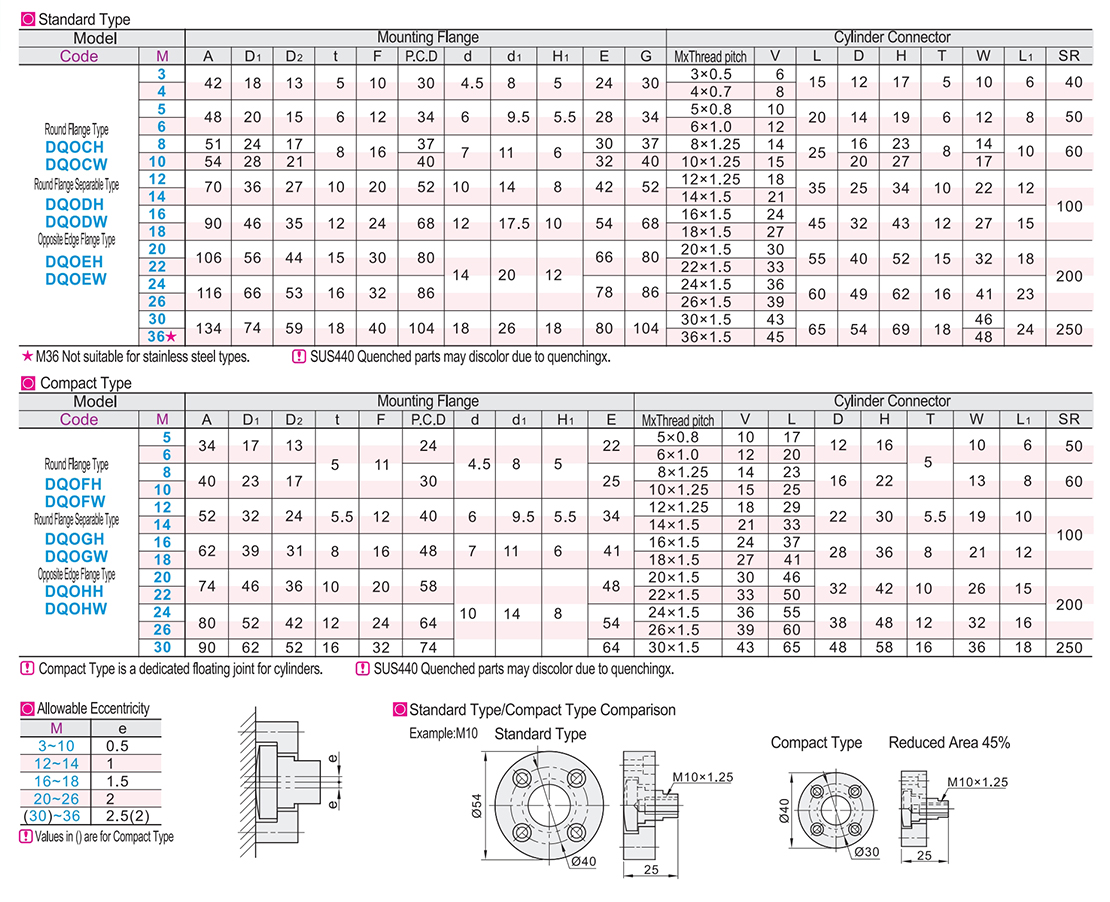

    Floating joint (assembly) mounting flanges Standard/compact/cylinder fitting internal thread typeParametric diagram1
