Floating joint (single piece) Cylinder connector internal thread type/compact type

Parameter selection:
type
Please select
Compact type
Cylinder side connection mode
Please select
Internal thread
material
Please select
S45C
Surface treatment
Please select
nigrescence
Size selection
Please select
Fixed size
Product model:
Code
Please select
DQROH
M
Please select
5 6 8 10 12 14 16 18 20 22 24 26 30
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

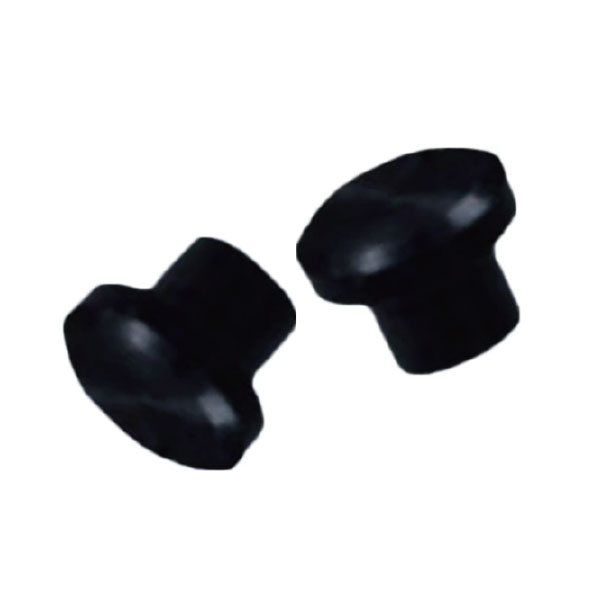

    Floating joint (single piece) Cylinder connector internal thread type/compact typeTexture map

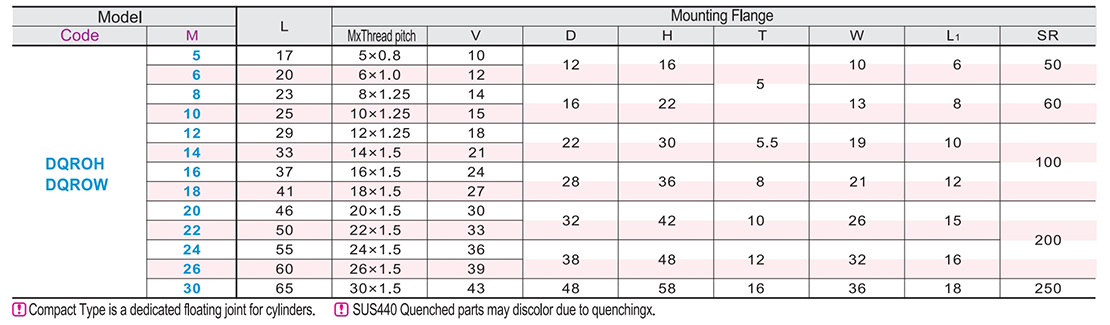

    选型表

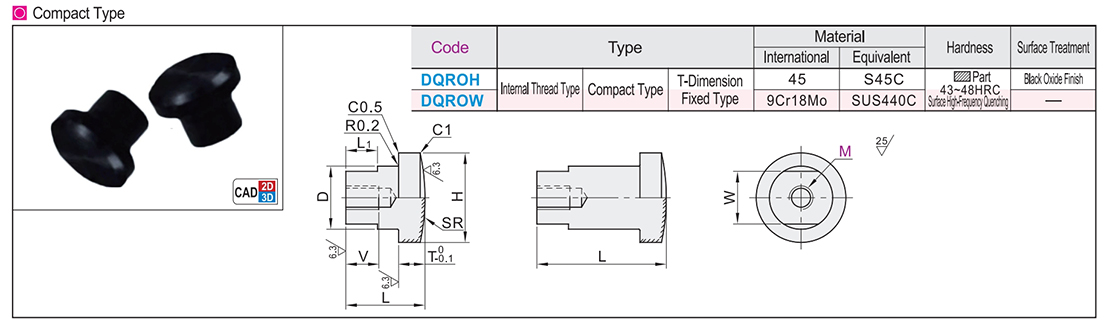

    Floating joint (single piece) Cylinder connector internal thread type/compact typeParametric diagram1
