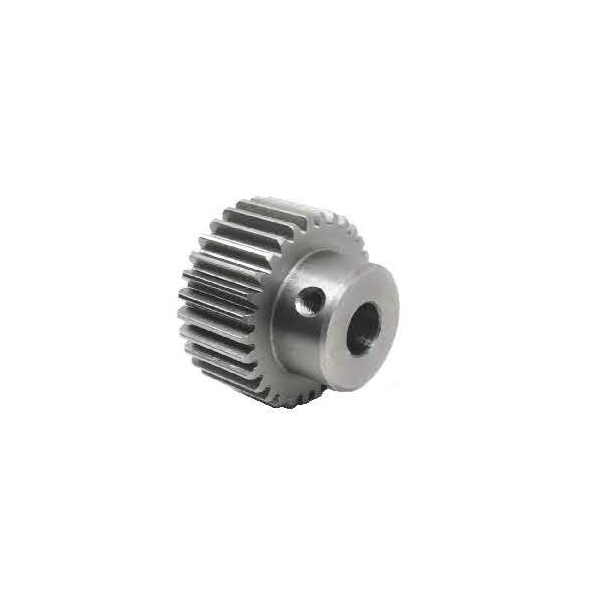

Grinding spur gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20°

Grinding spur gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20°

Parameter selection：
material
Please select
S45C
Surface treatment
Please select
nigrescence
Tooth surface hardness
Please select
HRC51~55
Shaft hole shape
Please select
Round pass Screw locking type Keyway pass
Product model：
Code
Please select
EACDO EACEO EACFO
module
Please select
1 1.5 2 2.5 3
Number of teeth
Please select
18 20 22 24 25 26 28 30 32 35 36 40 45 48 50 60 70 80 100
B
Please select
8 15 20 25 30
Gear shape
Please select
A B
P
Please select
8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 50
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details

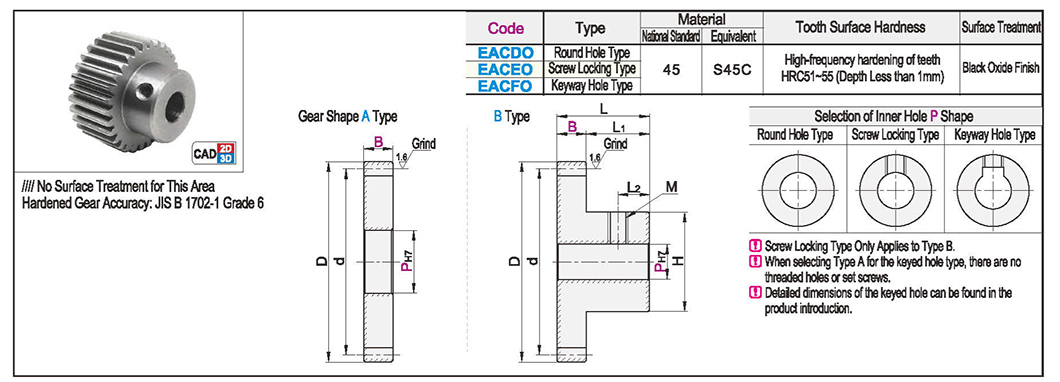

  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

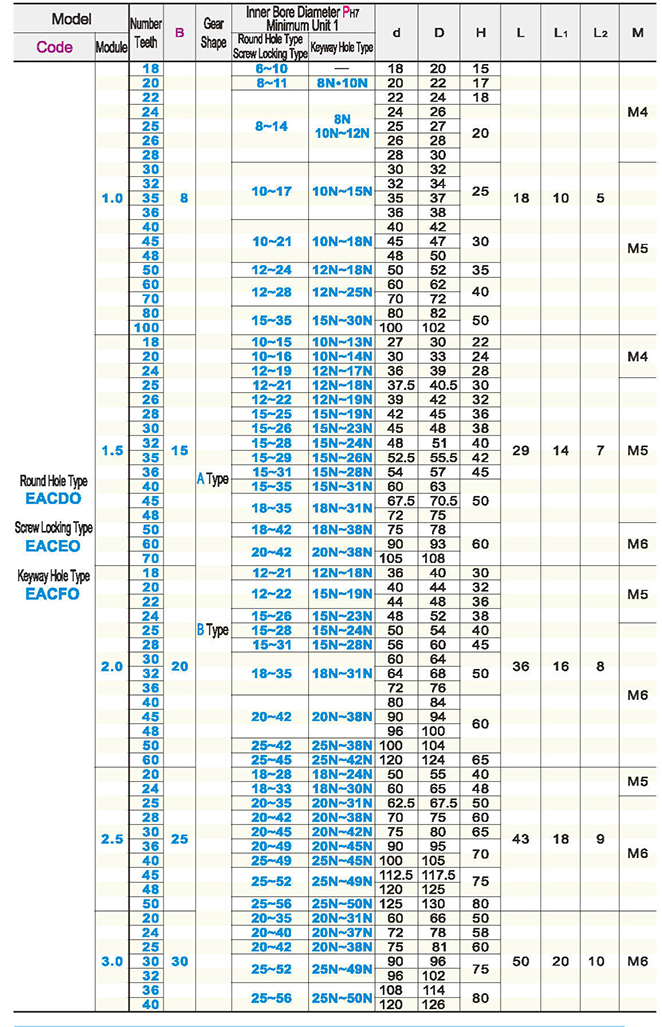

    Parametric diagram
    Grinding spur gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20°Texture map
    EAC
    Grinding spur gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20°Parametric diagram1

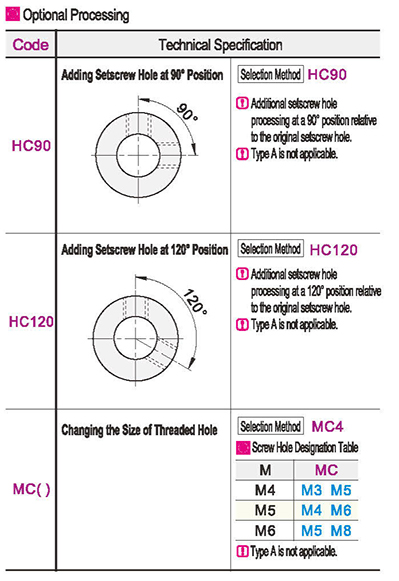

  • Optional parameter diagram
  • No picture
