Helical gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20° Helix Angle 45°

Helical gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20° Helix Angle 45°

Conditional screening:
Helical gear
Parameter selection：
material
Please select
S45C MC nylon SUS304
Surface treatment
Please select
- nigrescence
Tooth surface hardness
Please select
- HRC40~45
Shaft hole shape
Please select
Keyway pass Screw locking type Round pass
Product model：
Code
Please select
EAUFM EAUFN EAUFO EAUEQ EAUEO EAUEN EAUEM EAUDM EAUDN EAUDO EAUDP EAUDQ EAUEP EAUFP
module
Please select
1 1.5 2 2.5 3
Number of teeth
Please select
10 13 15 20 26 30
P
Please select
8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
Spiral direction
Please select
L R
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview

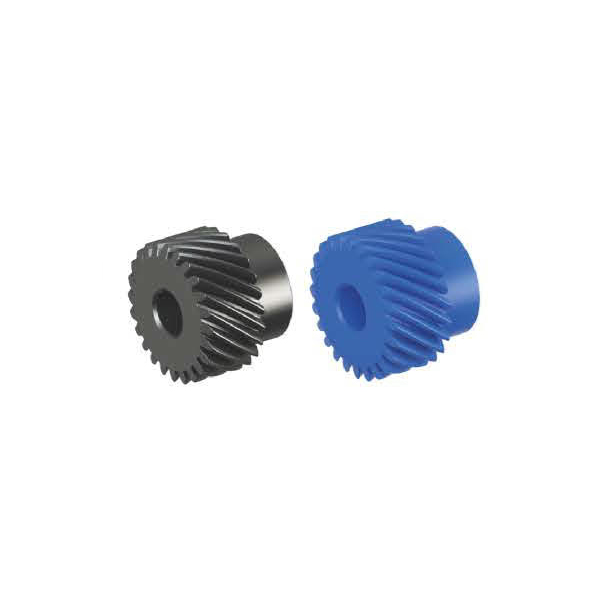

    Texture map
    disassemble

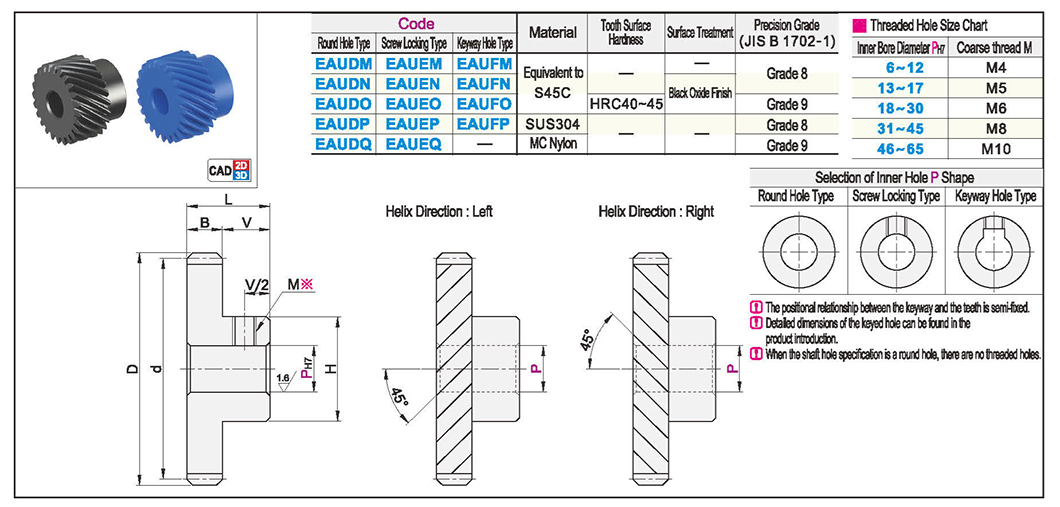

    Parametric diagram
    Helical gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20° Helix Angle 45°Texture map
    EAU
    Helical gear module 1.0/1.5/2.0/2.5/3.0 Pressure Angle 20° Helix Angle 45°Parametric diagram1

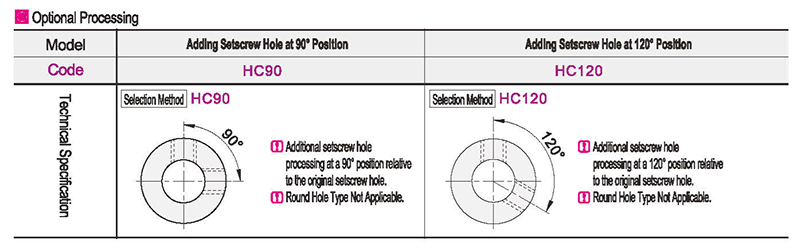

  • Optional parameter diagram
