High assembly High linear guide Heavy load slider flange interchangeable type

Conditional screening:
Linear guide
High assembly
Normal form
Heavy load
locking-type
locking-type
Alloy steel
Product model:
Code
Please select
GAHWC
H
Please select
24 30 36 42 48 60 70 90
Number of sliders
Preloading grade
Please select
Z0 ZA ZB
accuracy level
Please select
C H P
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

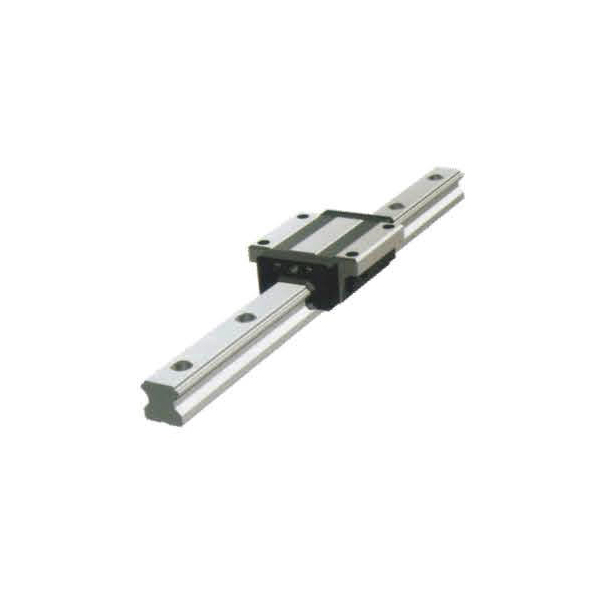

    High assembly High linear guide Heavy load slider flange interchangeable typeTexture map
    GAHWC

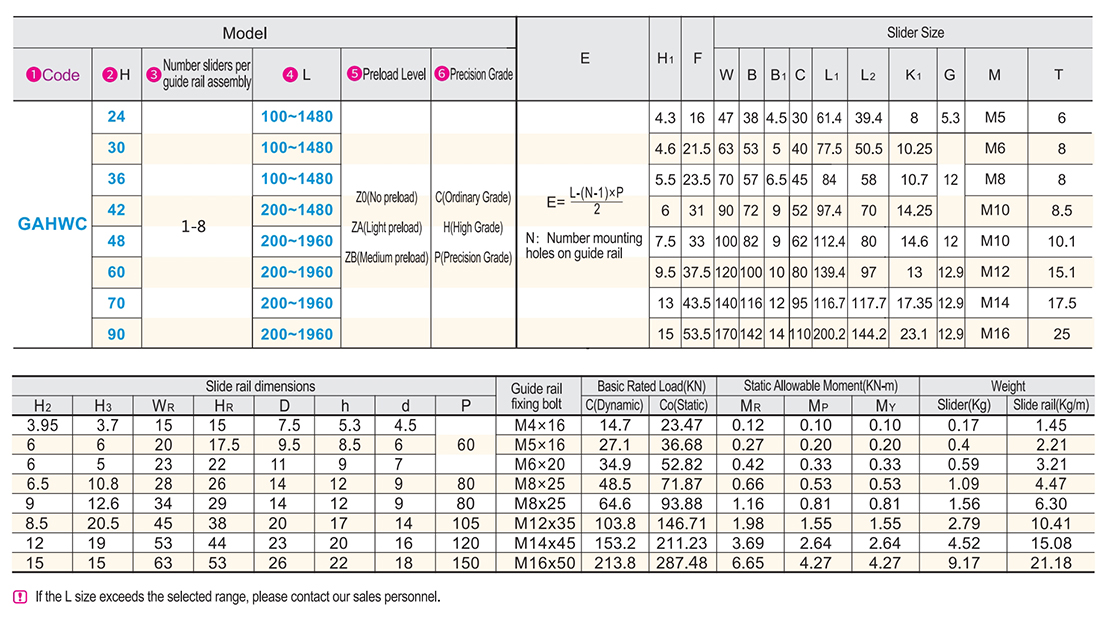

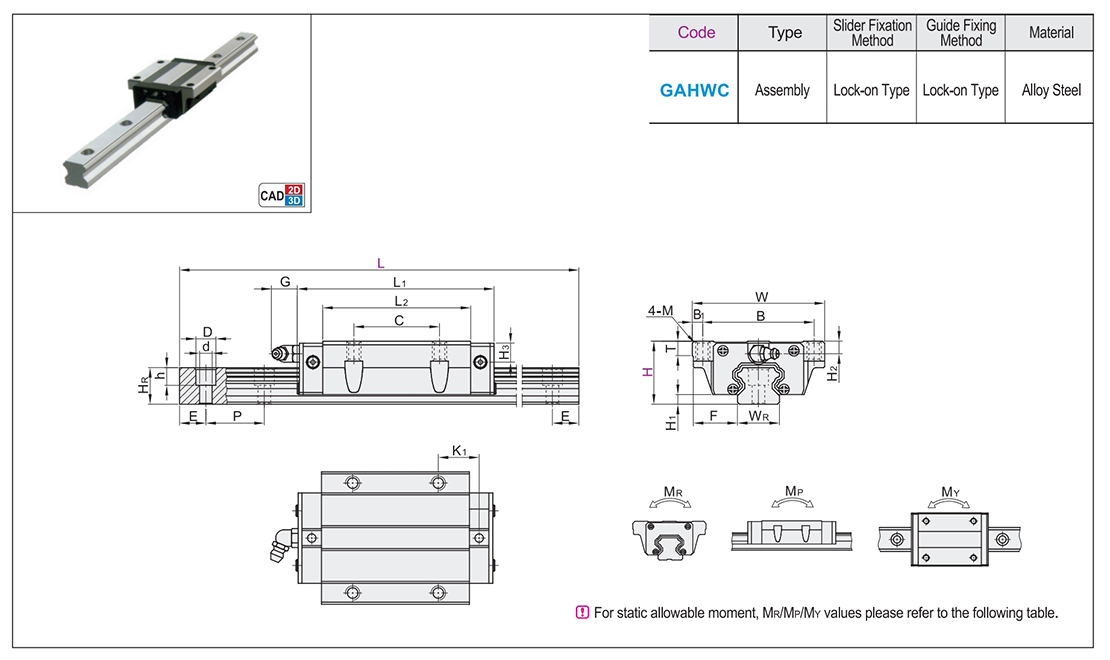

    High assembly High linear guide Heavy load slider flange interchangeable typeParametric diagram1
  • No picture
