High torque circular arc tooth synchronous wheel S5M tooth pitch 5.0

Conditional screening:
Parameter selection:
material
Please select
Aluminium alloy S45C
Surface treatment
Please select
Natural anodizing Black anodizing No electrolytic nickel plating nigrescence
Belt width
Please select
10 15 25
Product model:
Code
Please select
VFXJH VFXJN VFXJK VFXJL VFXJM VFXKN VFXKO VFXKP VFXKQ VFXKR VFXLS VFXLT VFXLU VFXLV VFXLW
Pulley type
Please select
S5M100 S5M150 S5M250
Number of teeth
Please select
14 15 16 18 19 20 22 24 25 26 28 30 32 34 36 40 44 48 50 60 72
Pulley shape
Please select
A B
Shaft hole specification
Please select
H P N C V F Y
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

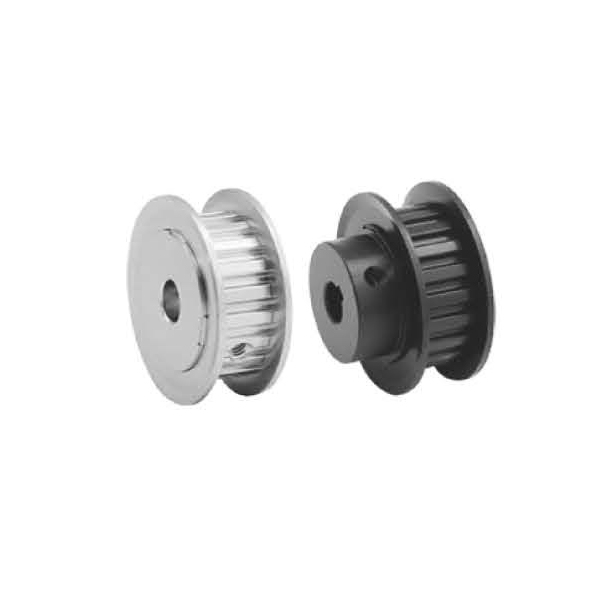

    High torque circular arc tooth synchronous wheel S5M tooth pitch 5.0Texture map

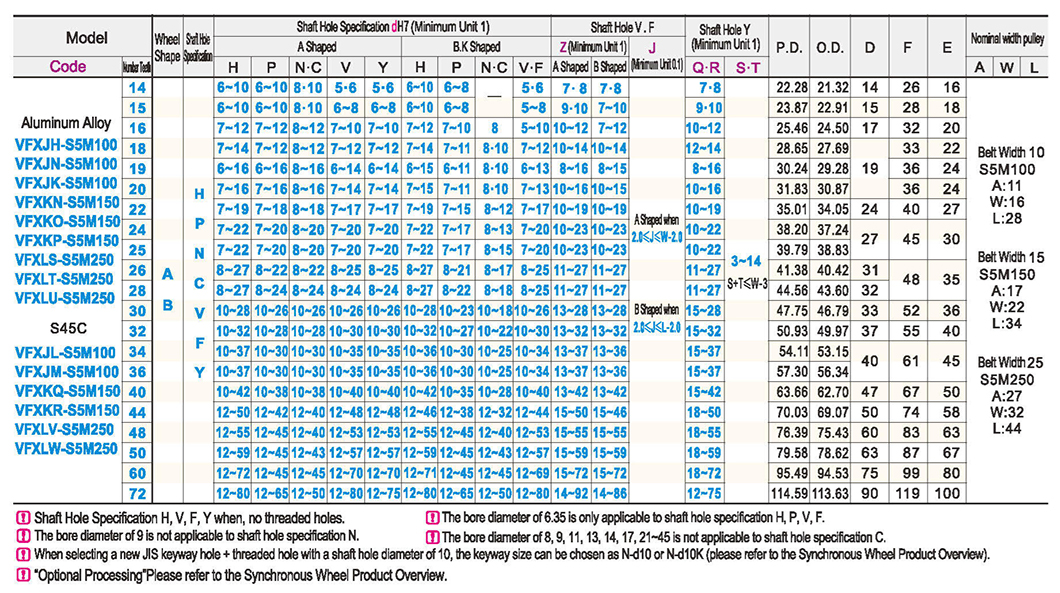

    选型表

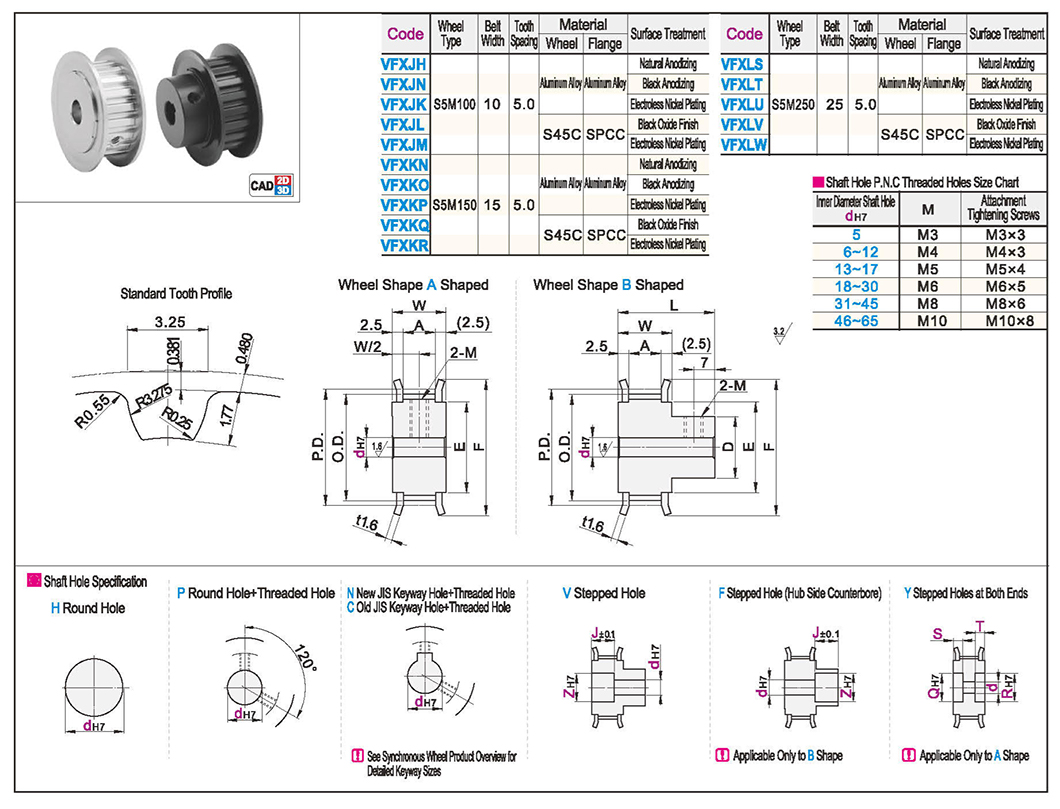

    High torque circular arc tooth synchronous wheel S5M tooth pitch 5.0Parametric diagram1
  • No picture
