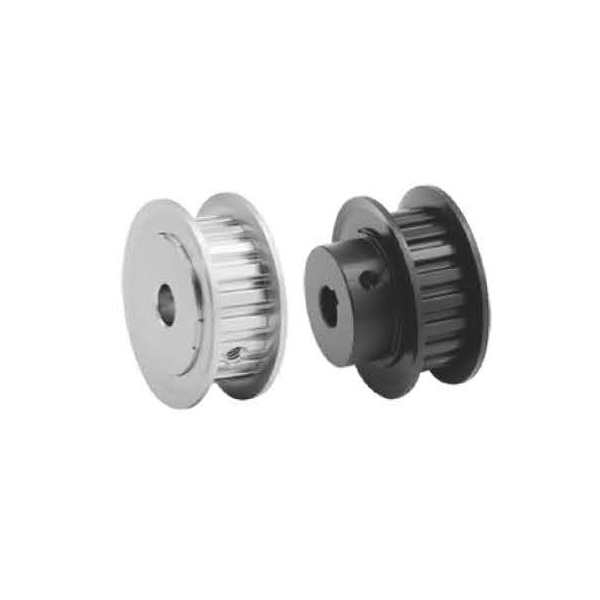

High torque circular arc tooth synchronous wheel S8M tooth pitch 8.0

Conditional screening:
Parameter selection:
material
Please select
Aluminium alloy S45C
Surface treatment
Please select
Natural anodizing Black anodizing No electrolytic nickel plating nigrescence
Belt width
Please select
15 25 30 40
Product model:
Code
Please select
VFYMX VFYMY VFYMZ VFYMA VFYMB VFYNC VFYND VFYNE VFYNF VFYNG VFYOH VFYOJ VFYOK VFYOL VFYOM VFYPN VFYPO VFYPT VFYPQ VFYPR
Pulley type
Please select
S8M150 S8M250 S8M300 S8M400
Number of teeth
Please select
18 19 20 21 22 24 25 26 28 30 32 34 36 38 40 44 48 50 60 72
Pulley shape
Please select
A B
Shaft hole specification
Please select
H P N C V F Y
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

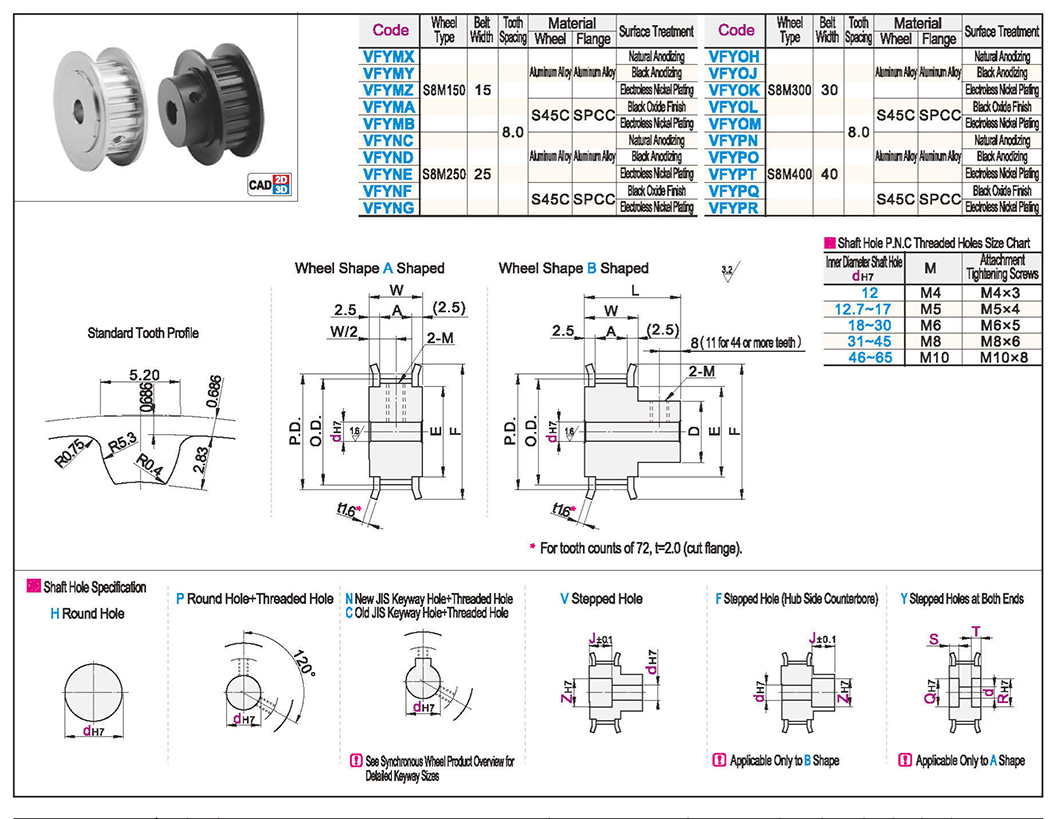

    High torque circular arc tooth synchronous wheel S8M tooth pitch 8.0Texture map

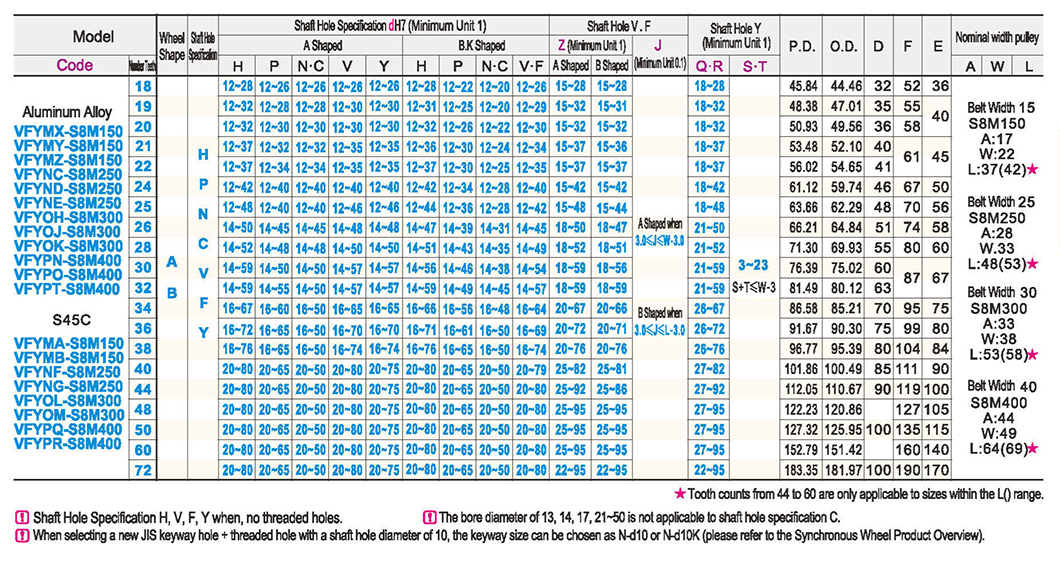

    选型表
    High torque circular arc tooth synchronous wheel S8M tooth pitch 8.0Parametric diagram1
  • No picture
