Keyless high torque circular arc gear synchronous wheel S3M type pitch 3.0

Conditional screening:
Parameter selection:
material
Please select
S45C A7075
Surface treatment
Please select
nigrescence No electrolytic nickel plating Natural anodizing
Belt width
Please select
10 15
Product model:
Code
Please select
VKAFG VKAFH VKAEK VKAEL VKAFJ VKAEM
Pulley type
Please select
S3M100 S3M150
Number of teeth
Please select
34 36 40 44 48 50 60 72
Pulley shape
Please select
E F
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • Commodity evaluation

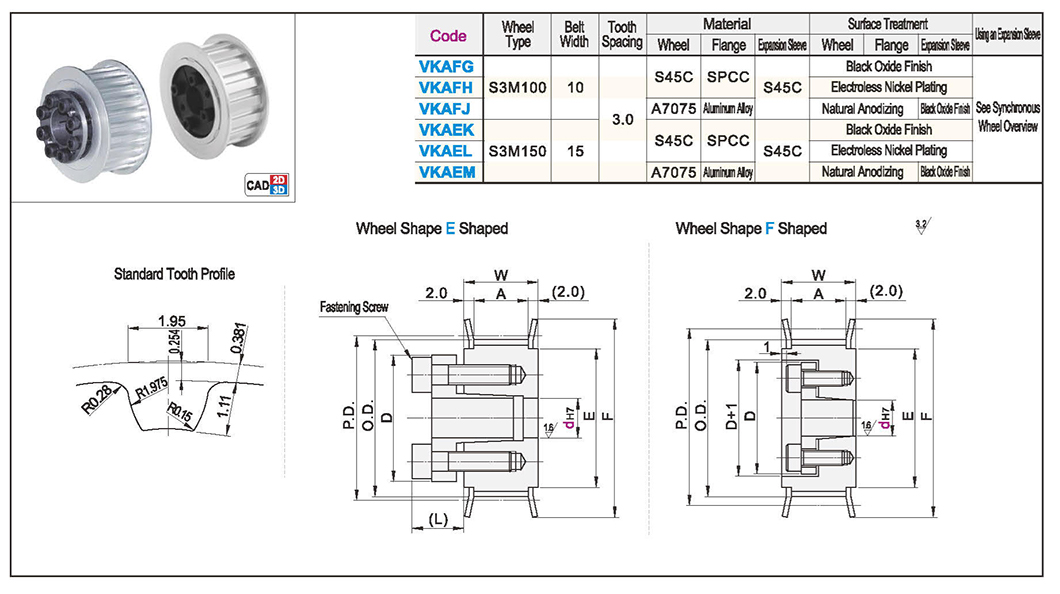

  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

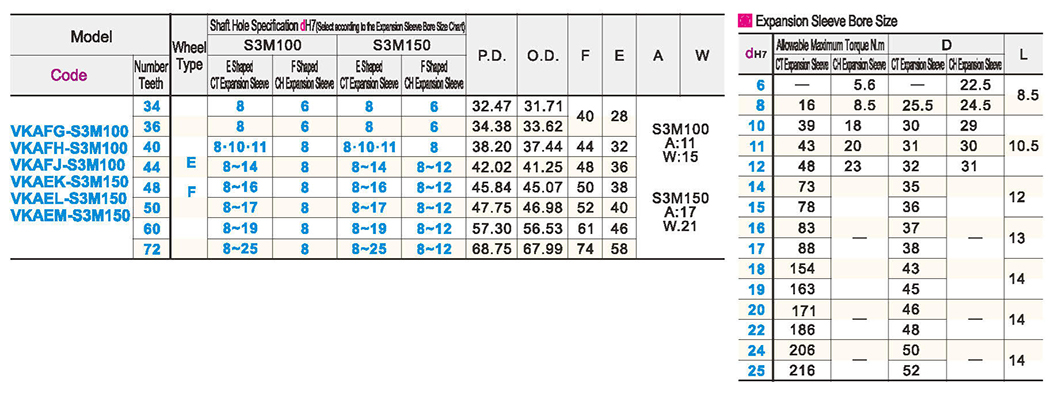

    Parametric diagram

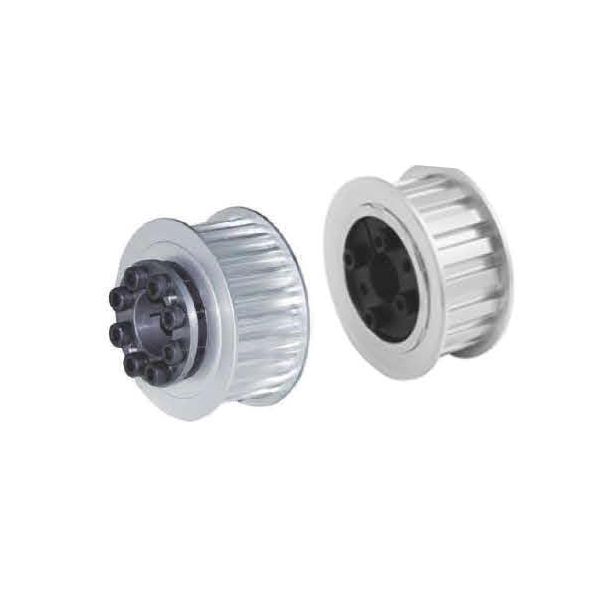

    Keyless high torque circular arc gear synchronous wheel S3M type pitch 3.0Texture map
    选型表
    Keyless high torque circular arc gear synchronous wheel S3M type pitch 3.0Parametric diagram1

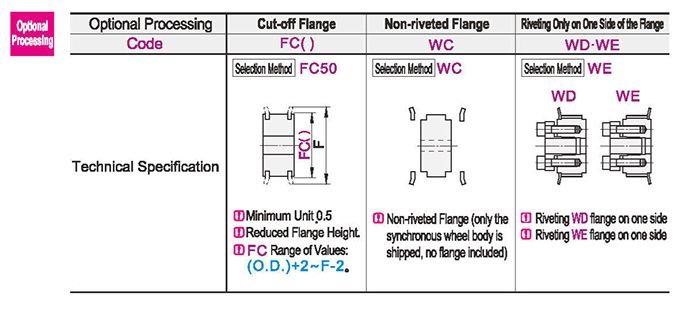

  • Optional parameter diagram
  • No picture
