Mechanical standard parts
/
Dowel/dowel bushing
/
Locating pin head cone-angle multi-edge type P size selection type /PLB size specified type

Locating pin head cone-angle multi-edge type P size selection type /PLB size specified type

Conditional screening:
Locating pin
Polygon type
Big head cone type
Parameter selection：
type
Please select
P size selection type PLB size specified type
Tolerance class
Please select
Dm6 Dp6 Dg6
material
Please select
SKS3 SUS304 SUS440C SUJ2
Surface treatment
Please select
There is no Hard chrome plating
Product model：
Code
Please select
BAGBQ BAGBR BAGBV BAGBS BAGBW BAGBT BAGCQ BAGCR BAGCV BAGCS BAGCW BAGCT BAGDU BAGGQ BAGGR BAGGV BAGGS BAGGW BAGGT BAGJQ BAGJR BAGJV BAGJS BAGJW BAGJT BAGKQ BAGKR BAGKV BAGKS BAGKW BAGKT
D
Please select
1 2 3 4 5 6 8 10 12 13 16 20
P
Please select
2 3 4 5 6 8 10 12 13 15 16 20 25 30
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

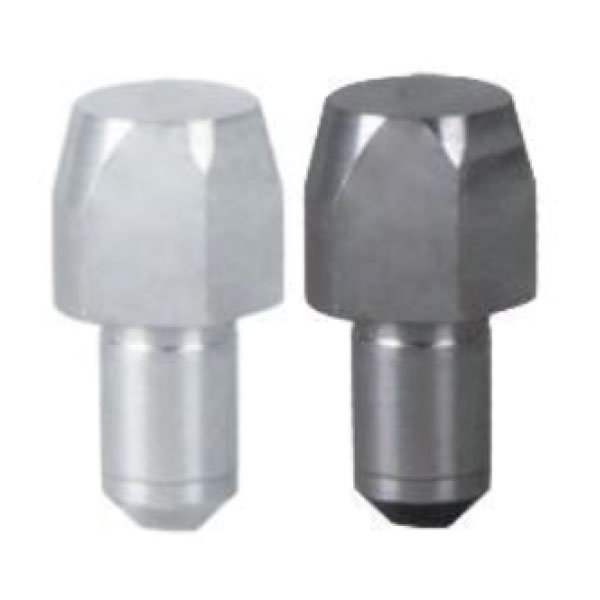

    Locating pin head cone-angle multi-edge type P size selection type /PLB size specified typeTexture map

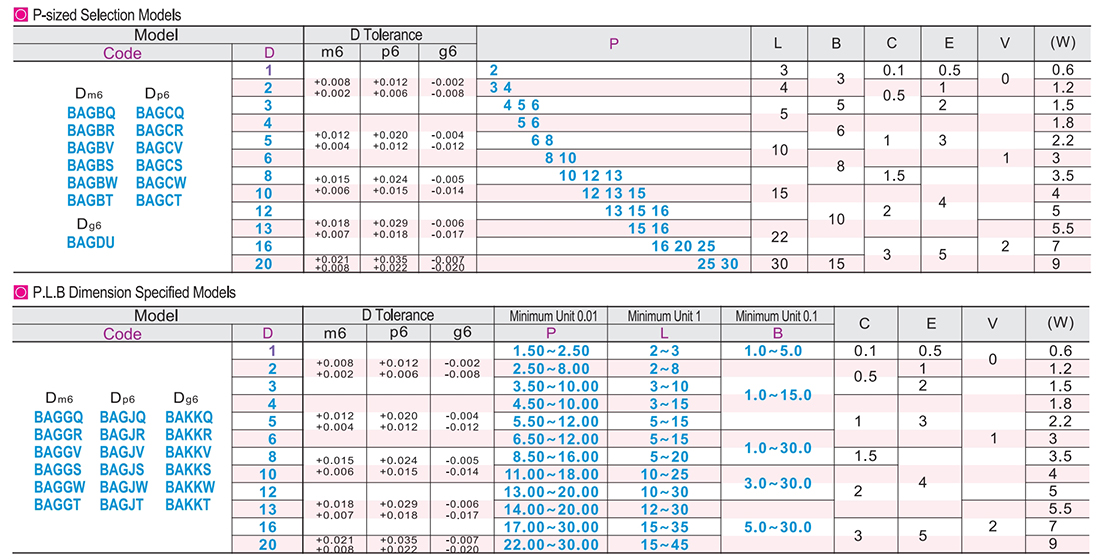

    选型表

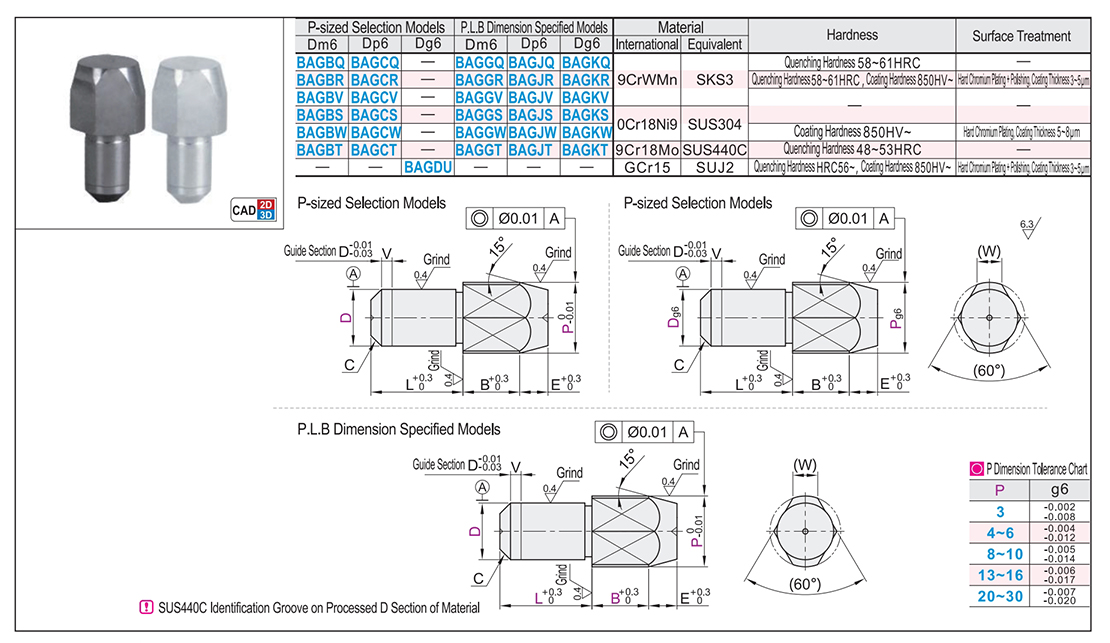

    Locating pin head cone-angle multi-edge type P size selection type /PLB size specified typeParametric diagram1

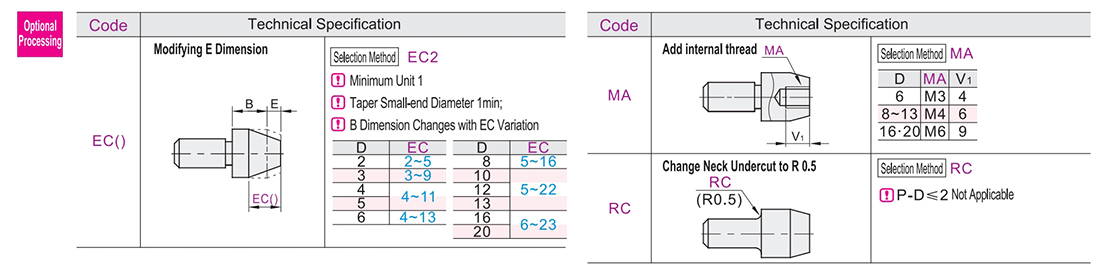

  • Optional parameter diagram
