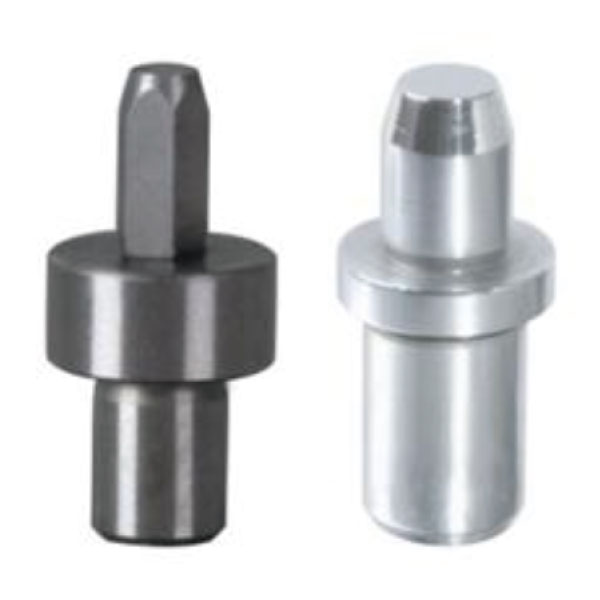

Locating pin head/small head conical Angle type with shoulder type internal thread type P size selection type /PLB size specified type

Conditional screening:
Locating pin
Big head/small head cone type
Parameter selection:
Imported surface shape
Please select
Circular type Polygon type
type
Please select
P size selection type PLB size specified type
material
Please select
SKS3 SUS304 SUJ2
Surface treatment
Please select
There is no Hard chrome plating
Product model:
Code
Please select
BDPEQ BDPER BDPES BDPET BDPFQ BDPFR BDPFS BDPFT BDPGQ BDPGR BDPGS BDPGT BDPHQ BDPHR BDPHS BDPHT
D
Please select
5 6 8 8T 10 10T 12 12T 13 13T 16 16T 20 20T
P
Please select
3 4 5 6 8 10 12 13 14 15 16 20
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram
    Locating pin head/small head conical Angle type with shoulder type internal thread type P size selection type /PLB size specified typeTexture map
    选型表

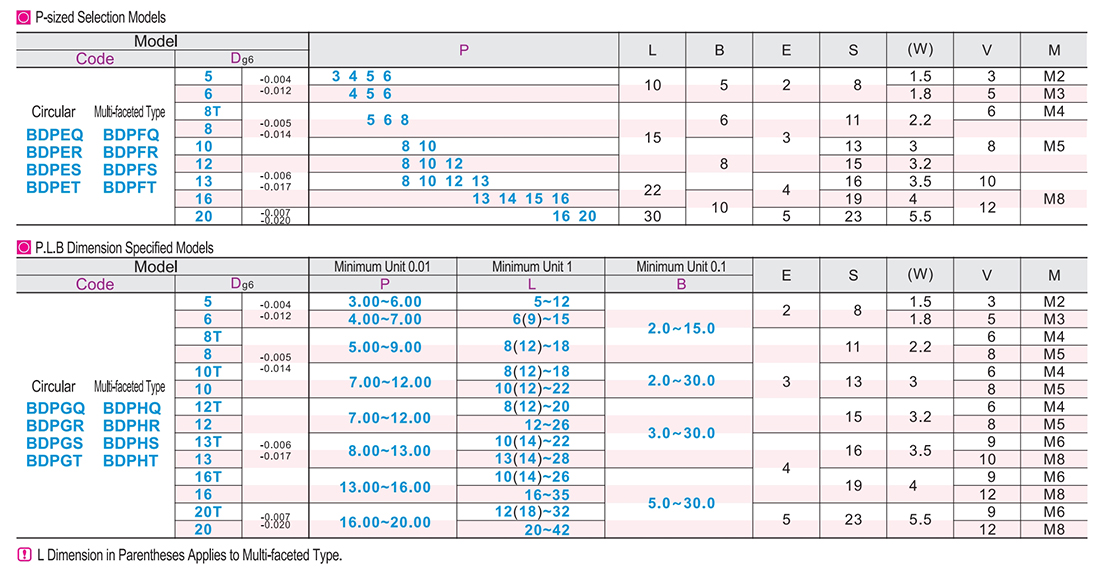

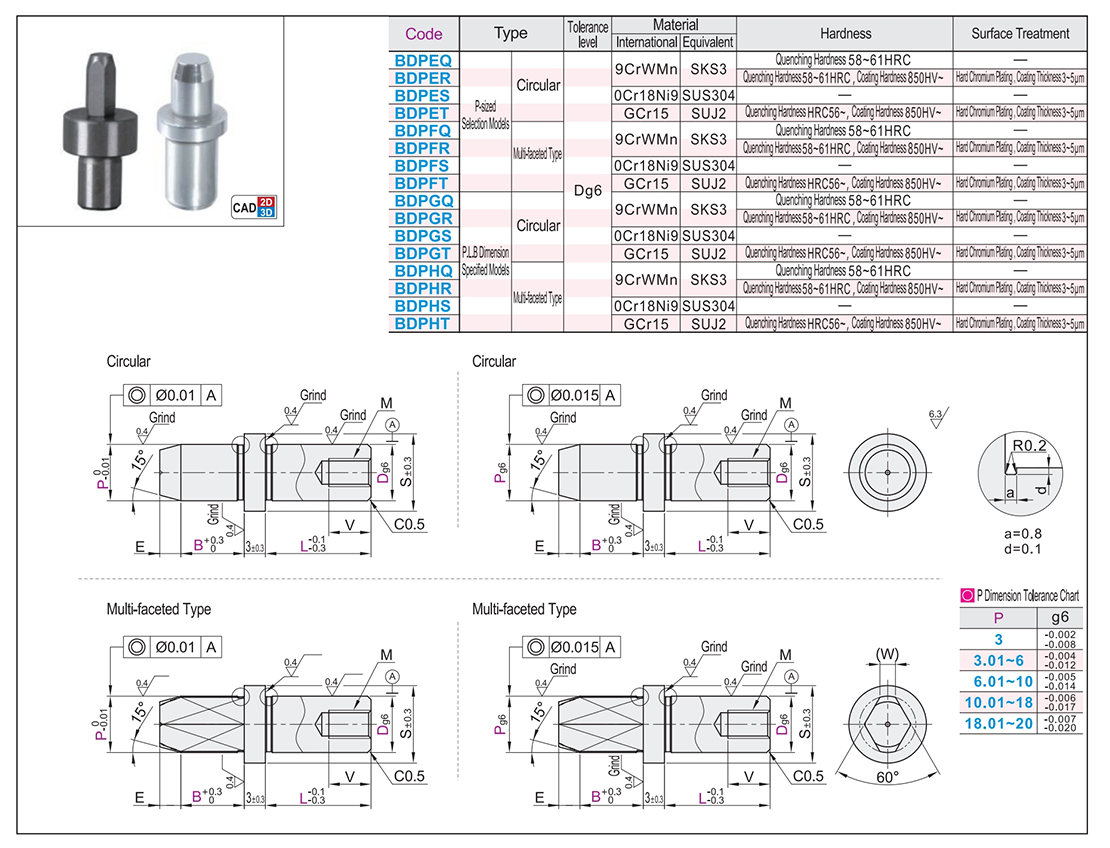

    Locating pin head/small head conical Angle type with shoulder type internal thread type P size selection type /PLB size specified typeParametric diagram1
