CLASSIFICATION

Home page
/
Mechanical standard parts
/
Cantilever pin/hinge pin
/
Overhang pin external thread mounting type with external thread type standard type

Overhang pin external thread mounting type with external thread type standard type

Conditional screening:
Hanging wall pin
Male thread
Male thread
Opposite edge cut type
Parameter selection：
Size selection
Please select
Fixed thread length type Thread length specified type
material
Please select
S45C SUS304 SCM435
Surface treatment
Please select
nigrescence No electrolytic nickel plating -
Product model：
Code
Please select
NMFCH NMFCJ NMFCK NMFCX NMFDH NMFDJ NMFDK
specification
Please select
3 3A 4 4A 5 5A 6 6A 8 8A 10 10A 12 13 15 16 17 18 20 20A 22 22A 25 25A 30 30A
D
Please select
3 4 5 6 8 10 12 13 15 16 17 18 20 22 25 30
N
Please select
3 4 5 6 8 10 12 16 20 24 30
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

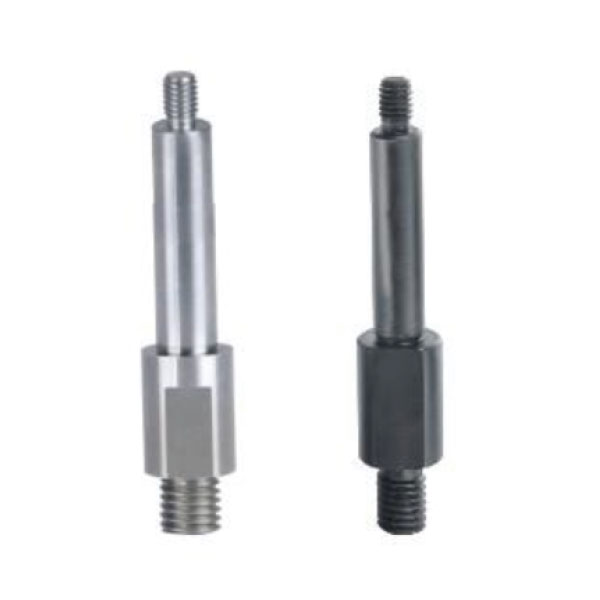

    Overhang pin external thread mounting type with external thread type standard typeTexture map

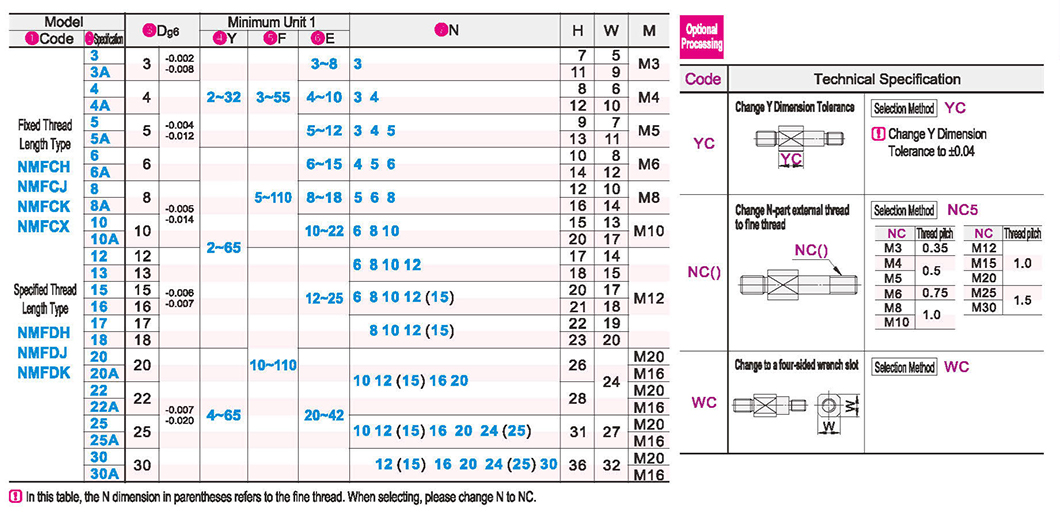

    选型表

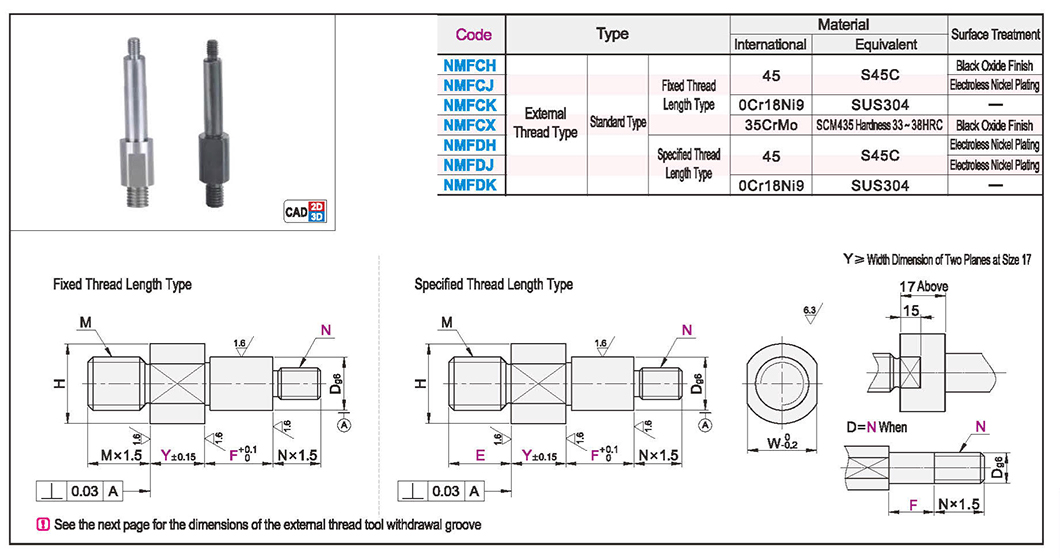

    Overhang pin external thread mounting type with external thread type standard typeParametric diagram1
  • Optional parameter diagram
  • No picture
