Mechanical standard parts
/
Cantilever pin/hinge pin
/

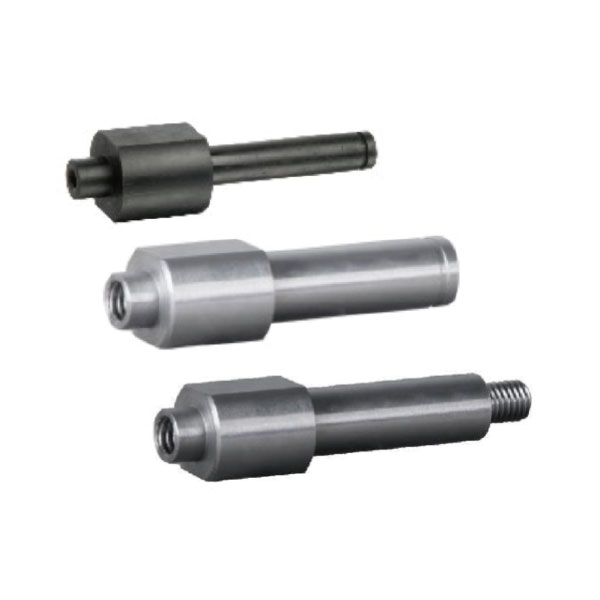

Overhang pin heavy load type with retaining ring groove type/two ends of internal thread type/one end of internal thread one end of external thread type

Overhang pin heavy load type with retaining ring groove type/two ends of internal thread type/one end of internal thread one end of external thread type

Conditional screening:
Heavy load suspension pin
Internal thread
Parameter selection：
Fixed part shaft end shape
Please select
Retainer groove Internal thread Male thread
material
Please select
S45C SUS304
Surface treatment
Please select
nigrescence No electrolytic nickel plating -
Product model：
Code
Please select
NQAEH NQAEJ NQAEK NQBEH NQBEJ NQBEK NQCEH NQCEJ NQCEK
specification
Please select
6 8 10 12 15 17 20 25 30
D
Please select
6 8 10 12 15 17 20 25 30
T
Please select
1 3 5 2 8
N
Please select
3 4 5 6 8 10 12 16 20
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Commodity evaluation
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

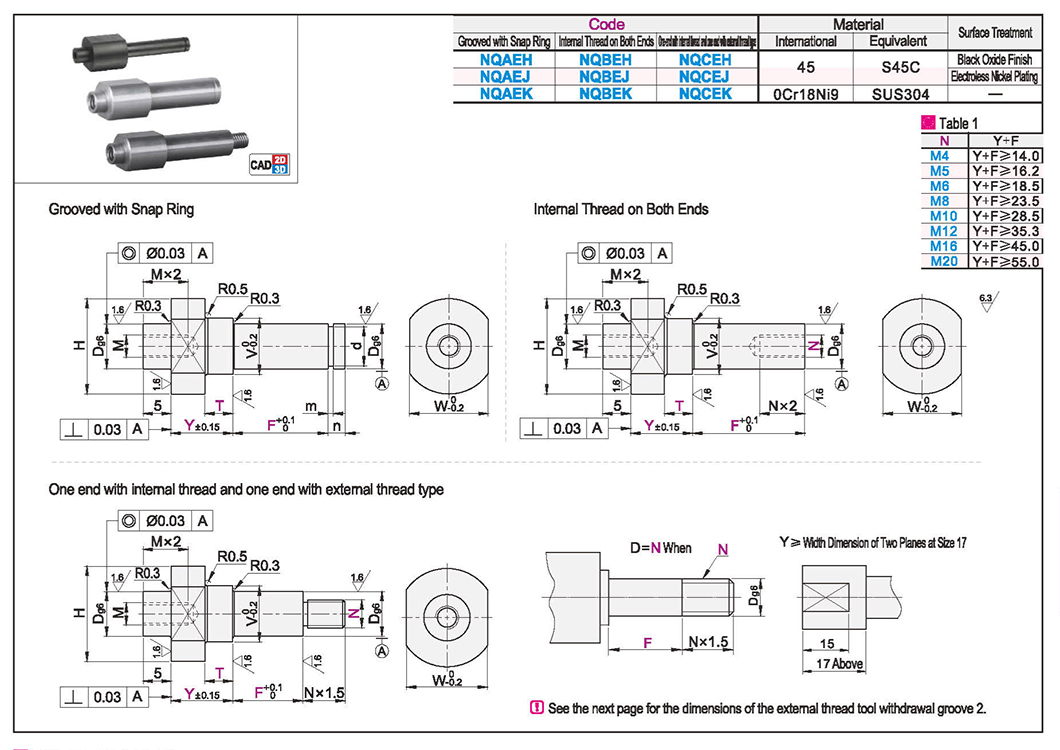

    Parametric diagram
    Overhang pin heavy load type with retaining ring groove type/two ends of internal thread type/one end of internal thread one end of external thread typeTexture map
    选型表

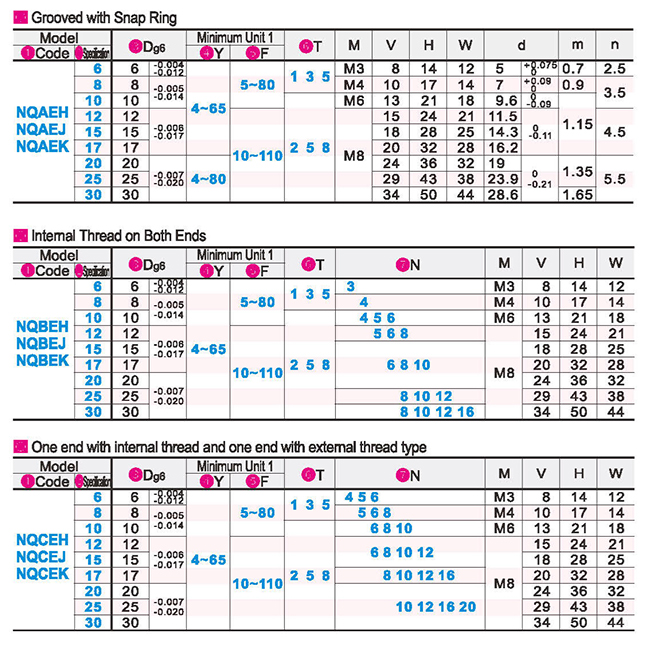

    Overhang pin heavy load type with retaining ring groove type/two ends of internal thread type/one end of internal thread one end of external thread typeParametric diagram1
    选型表

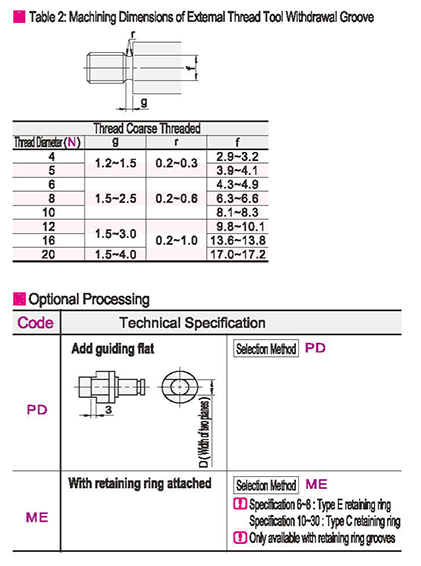

    • Optional parameter diagram
    • No picture
    • No video application is available for this model
