Mechanical standard parts
/
Cantilever pin/hinge pin
/
Overhang pin internal screw mounting type with retaining ring groove type Standard type/step type/hexagon type

Overhang pin internal screw mounting type with retaining ring groove type Standard type/step type/hexagon type

Conditional screening:
Hanging wall pin
Internal thread
Retainer groove
Parameter selection：
appearance
Please select
Opposite edge cut type bench Hexagonal type
material
Please select
S45C SUS304
Surface treatment
Please select
nigrescence No electrolytic nickel plating -
Product model：
Code
Please select
NNAEH NNAEJ NNAEK NNBEH NNBEJ NNBEK NNCEH NNCEJ NNCEK
specification
Please select
6 8 10 12 13 15 16 17 18 20 22 25 25A 30 30A
D
Please select
6 8 10 12 13 15 16 17 18 20 22 25 30 35
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview

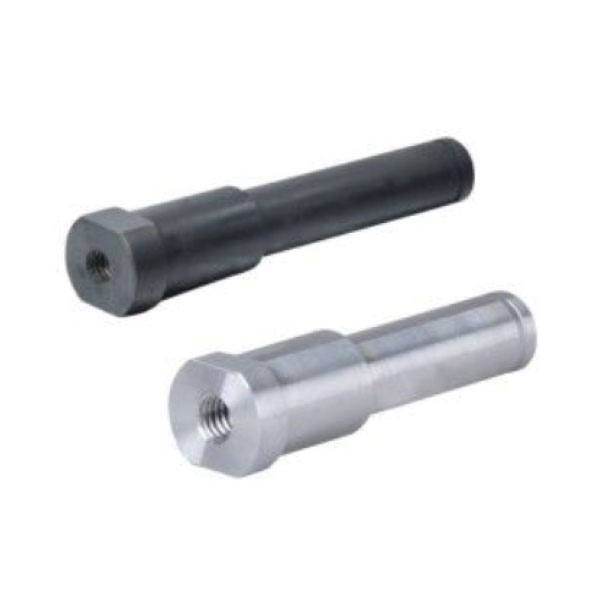

    Texture map
    disassemble

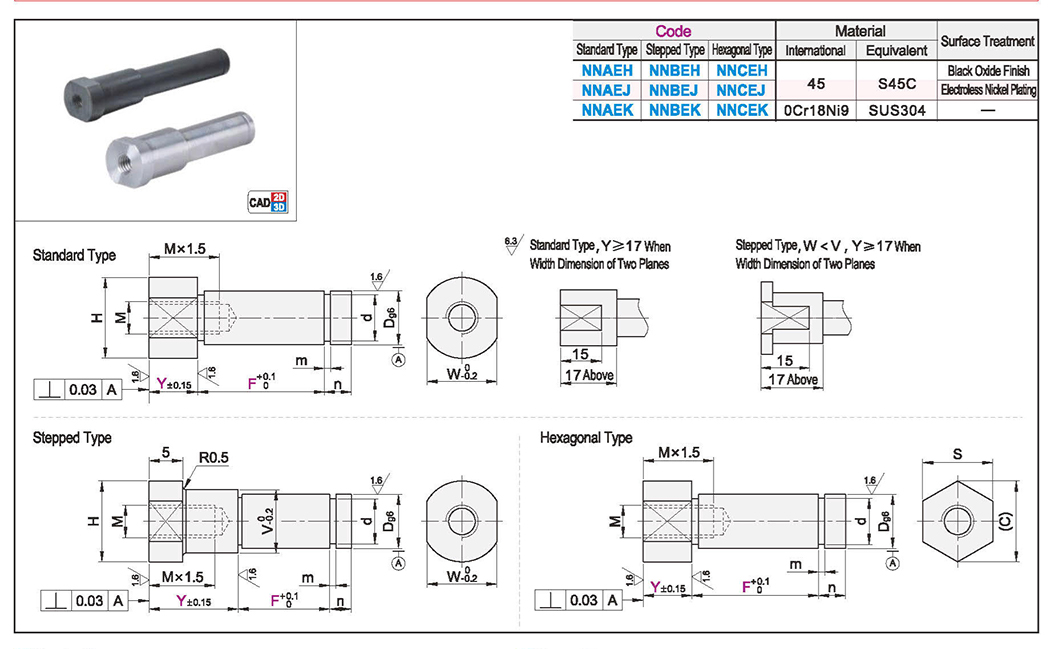

    Parametric diagram
    Overhang pin internal screw mounting type with retaining ring groove type Standard type/step type/hexagon typeTexture map

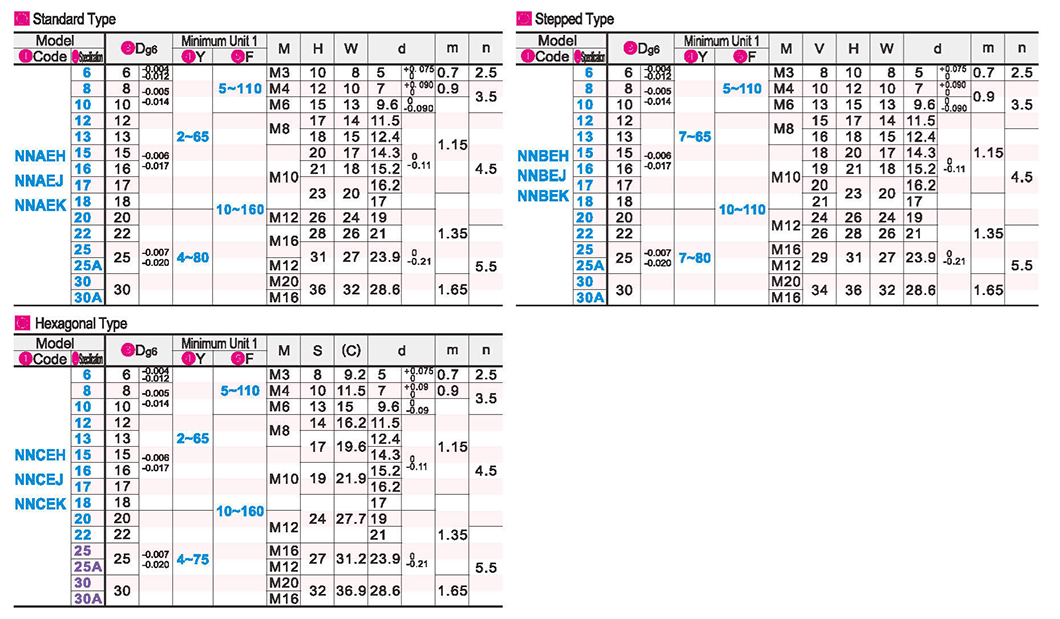

    选型表
    Overhang pin internal screw mounting type with retaining ring groove type Standard type/step type/hexagon typeParametric diagram1

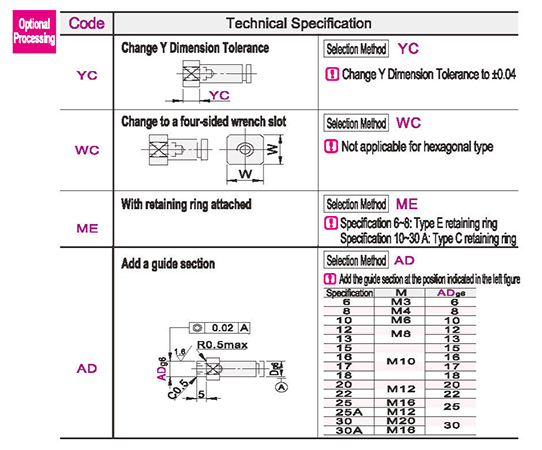

  • Optional parameter diagram
