Positioning pin straight rod spherical/straight rod cone standard type internal thread type

Conditional screening:
Locating pin
Parameter selection:
type
Please select
Straight bar spherical standard Straight rod spherical internal thread type Straight rod cone standard type Straight rod cone type with internal thread
material
Please select
SKS3 SUS304 SUS440C SUJ2
Surface treatment
Please select
There is no Hard chrome plating
Product model:
Code
Please select
BHLAQ BHLAR BHLAV BHLAS BHLAU BHLAT BHLAJ BHLBQ BHLBR BHLBV BHLBS BHLBU BHLBT BHLBJ BHLCQ BHLCR BHLCV BHLCS BHLCU BHLCT BHLDQ BHLDR BHLDV BHLDS BHLDU BHLDT
D tolerance
Please select
M P G H
D
Please select
1 2 3 4 5 6 8 10
A
Please select
15 30 45 60
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

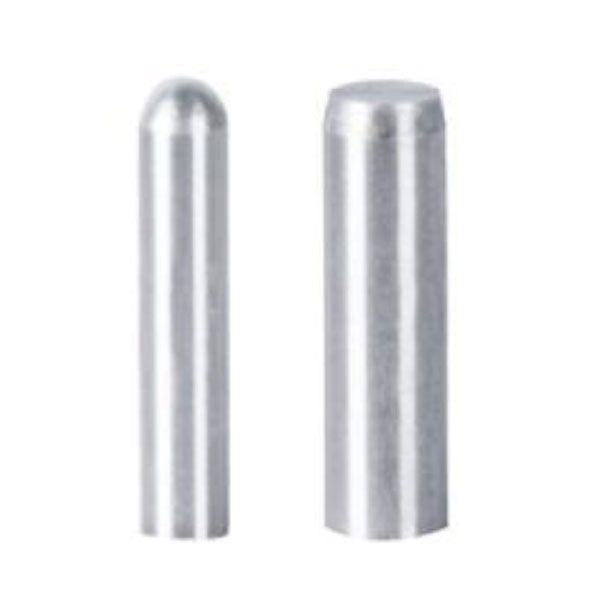

    Positioning pin straight rod spherical/straight rod cone standard type internal thread typeTexture map

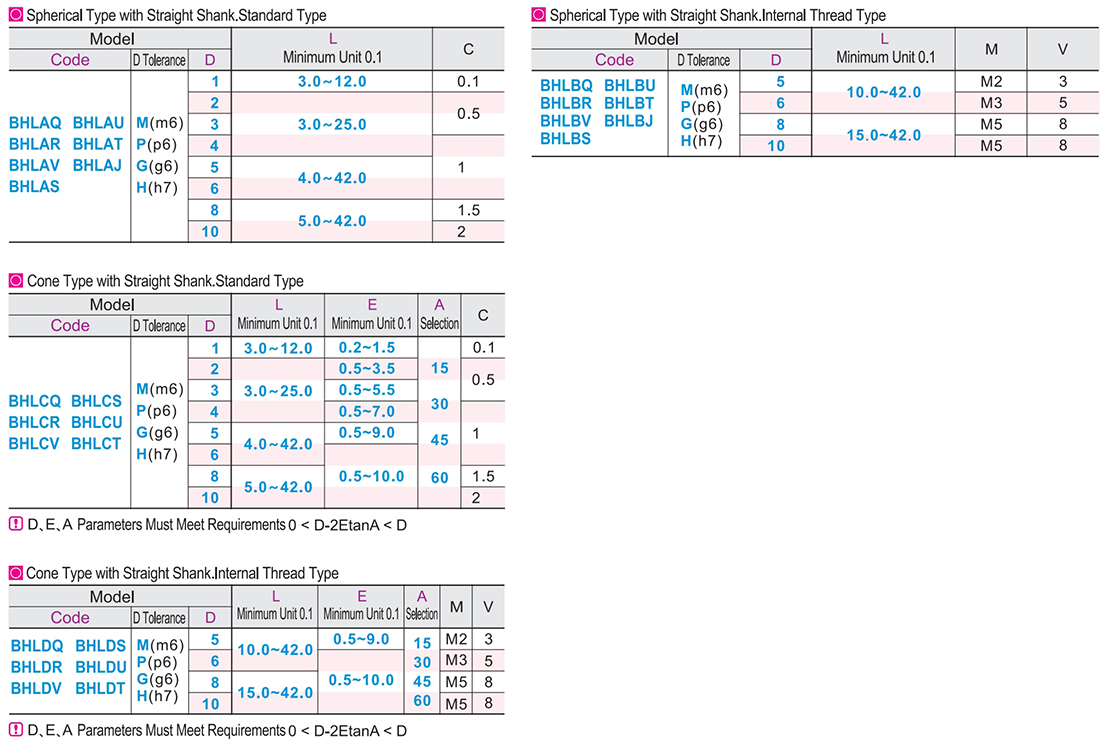

    选型表

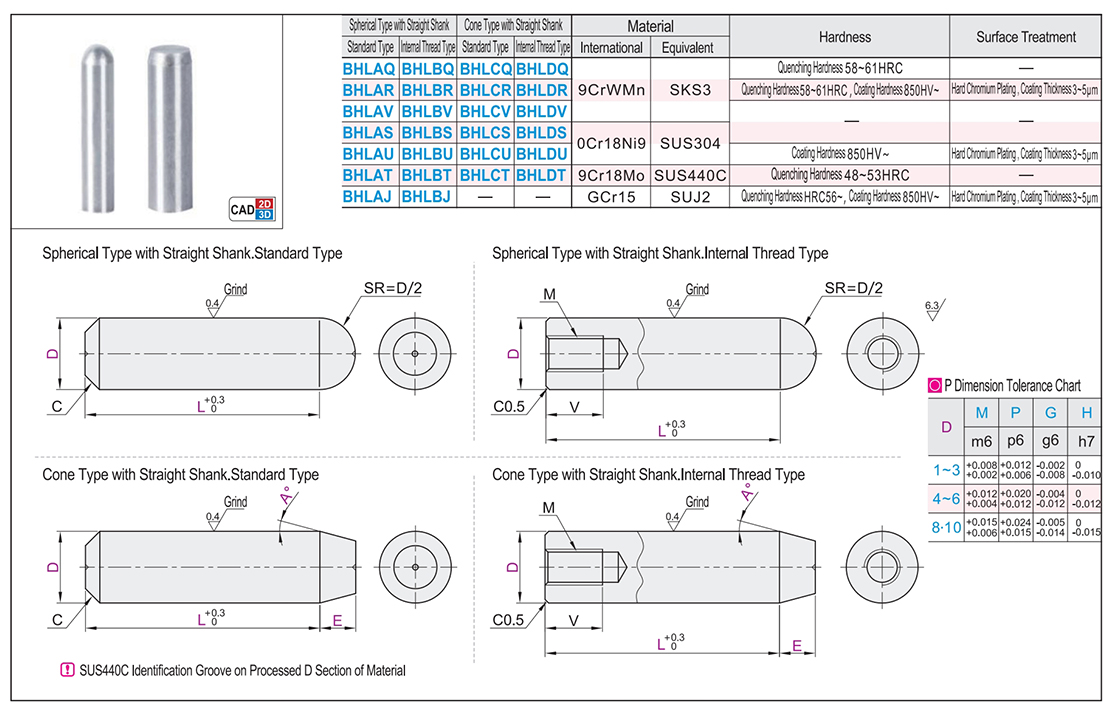

    Positioning pin straight rod spherical/straight rod cone standard type internal thread typeParametric diagram1

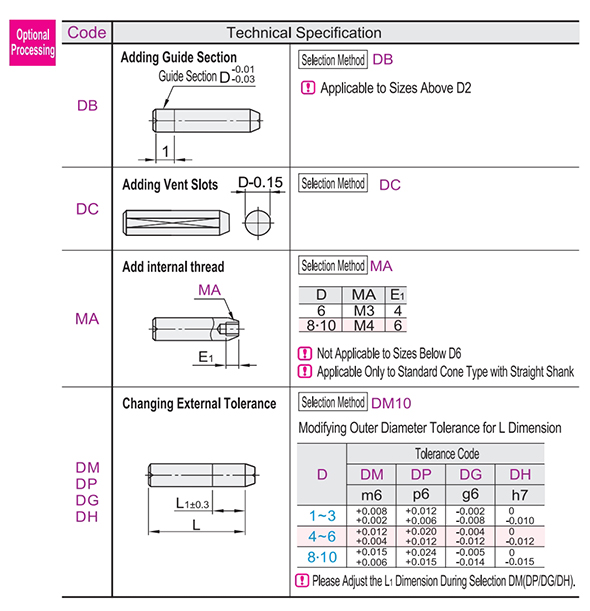

  • Optional parameter diagram
  • No picture
