Precision lock nut Ordinary lock type round type

Conditional screening:
Parameter selection:
Body material
Please select
S45C
Product model:
Code
Please select
YZADG
Tolerance dimension
Please select
M10 M12 M15 M17 M20 M25 M30 M35 M40 M45 M50 M55 M60 M65 M70 M75 M80 M85 M90 M95 M100 M105 M110 M115 M120 M125 M130 M140 M170
Screw pitch
Please select
0.75 1 1.5 2 3
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

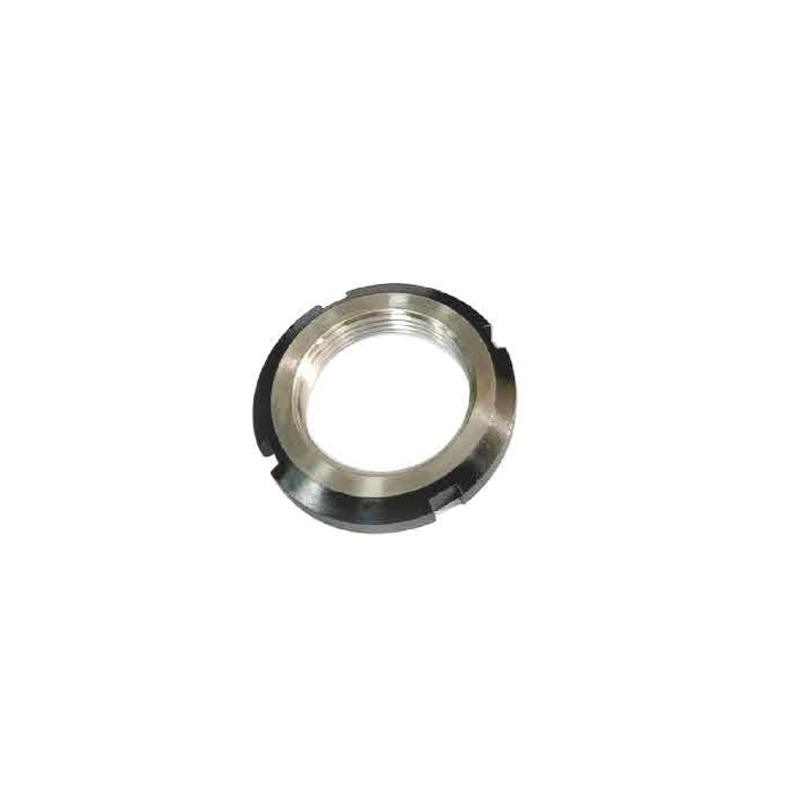

    Precision lock nut Ordinary lock type round typeTexture map
    yzad

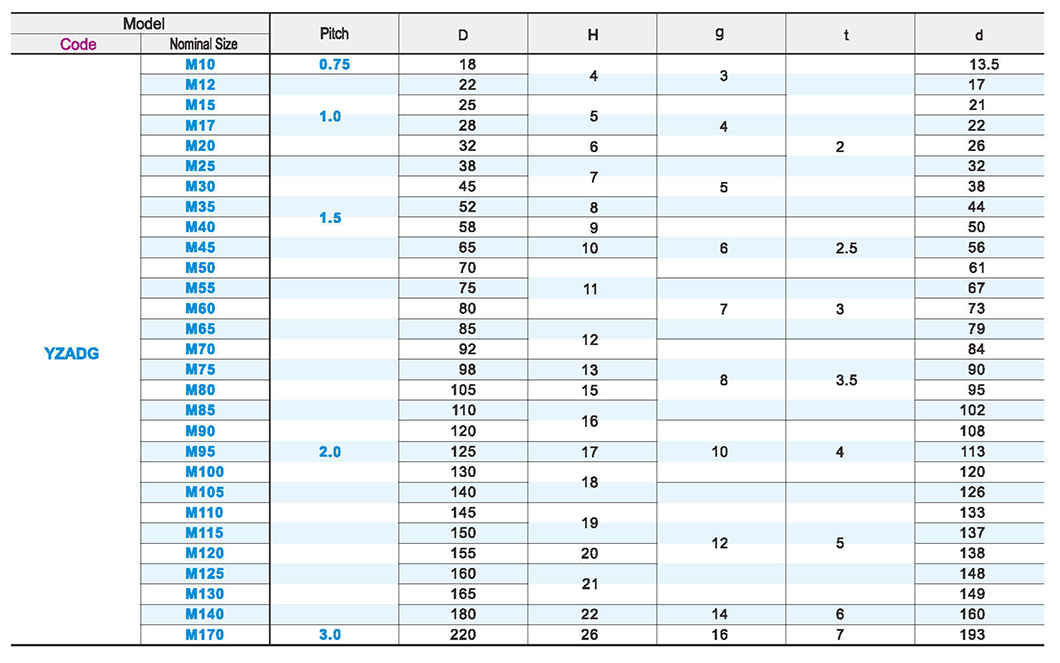

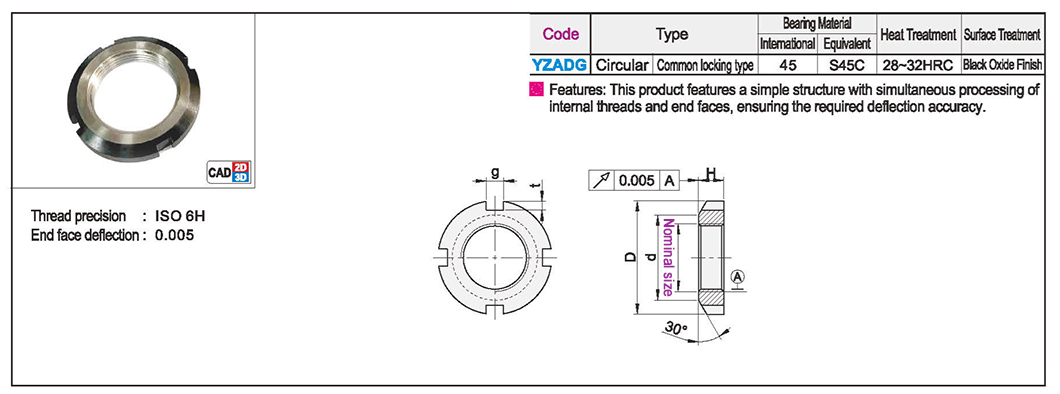

    Precision lock nut Ordinary lock type round typeParametric diagram1
  • No picture
