Rectangular spring in load spring (red)

Conditional screening:
Rectangular spring
SWOSC-V
Lx32%
Parameter selection:
type
Please select
Medium load type - Economy type
Product model:
Code
Please select
BUBM
D
Please select
6 8 10 12 14 16 18 20 22 25 27 30 35 40 50 60 70
L
Please select
10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 125 150 175 200 225 250 275 300 350
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble

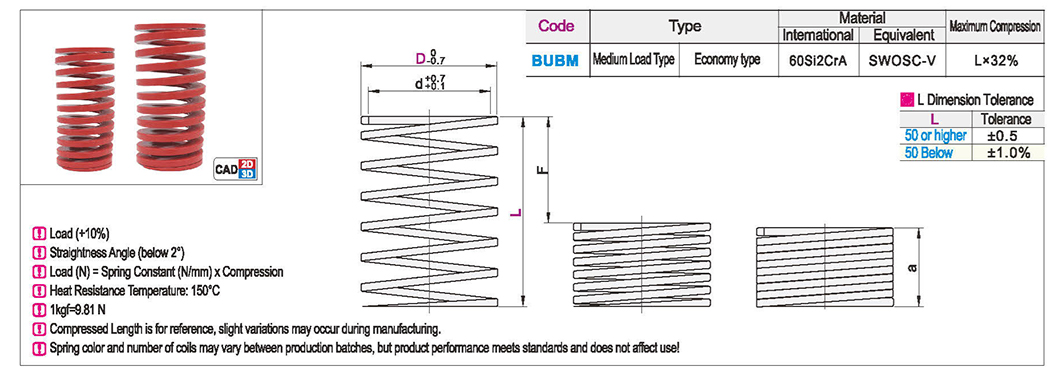

    Parametric diagram

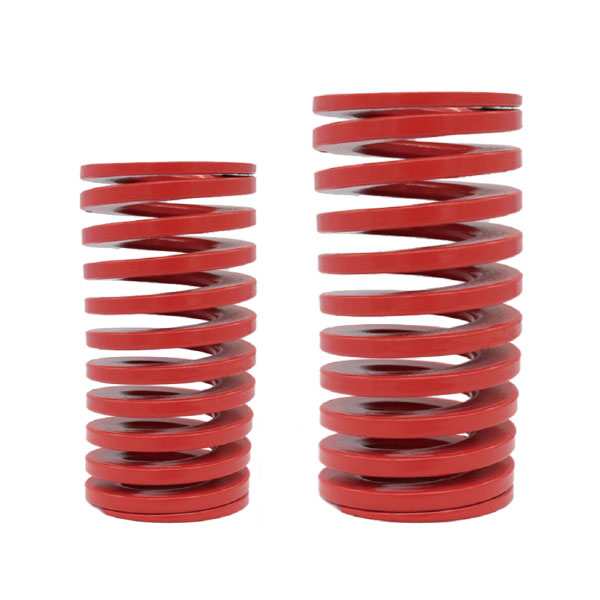

    Rectangular spring in load spring (red)Texture map
    TL

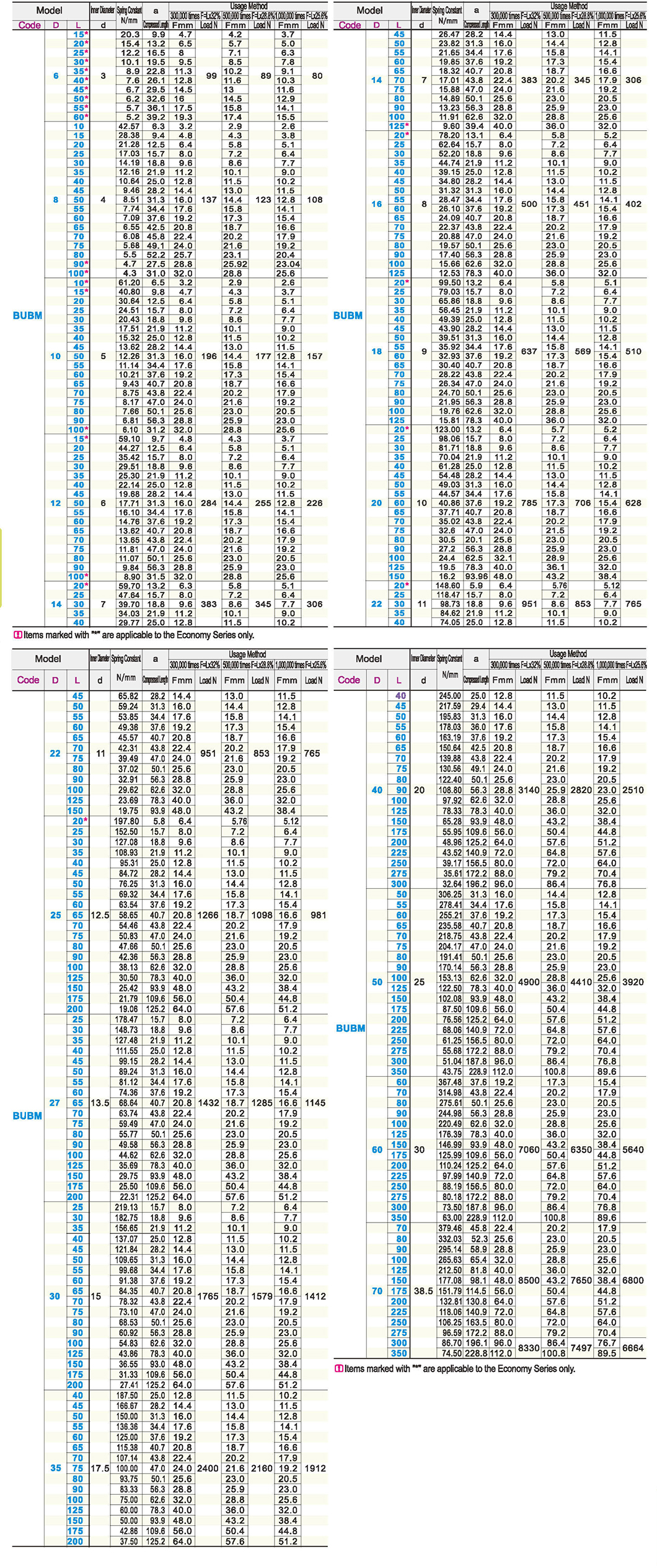

    Rectangular spring in load spring (red)Parametric diagram1
  • No picture
