CLASSIFICATION

Home page
/
Mechanical standard parts
/
Shaft ring/washer
/
Resin shaft ring Standard · Size specified/outside diameter selected

Resin shaft ring Standard · Size specified/outside diameter selected

Conditional screening:
Resin ring
Parameter selection：
Dimensional feature
Please select
Dimensioned type Outside diameter selection type
material
Please select
polyformaldehyde MC Nylon standard grade PEEK
colour
Please select
white black blue ivory gray
Product model：
Code
Please select
FYPYA FYPYB FYPYC FYPYD FYPYE FYQZA FYQZB FYQZC FYQZD FYQZE
V
Please select
0 1.5 2 2.6 3 4 5 6 8 10 12 15 16 20 25 30
D
Please select
4 5 6 8 10 11 12 13 14 15 16 18 20 25 30 35 40 50 60 70 80
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details

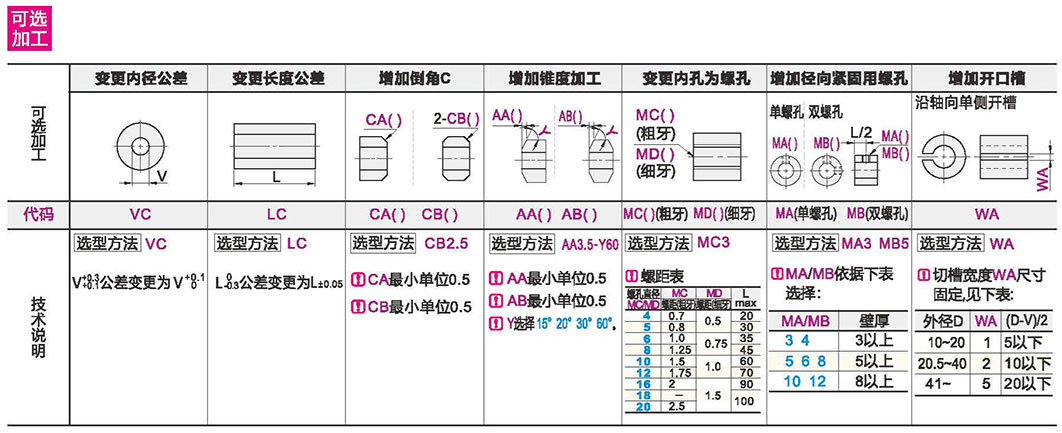

  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

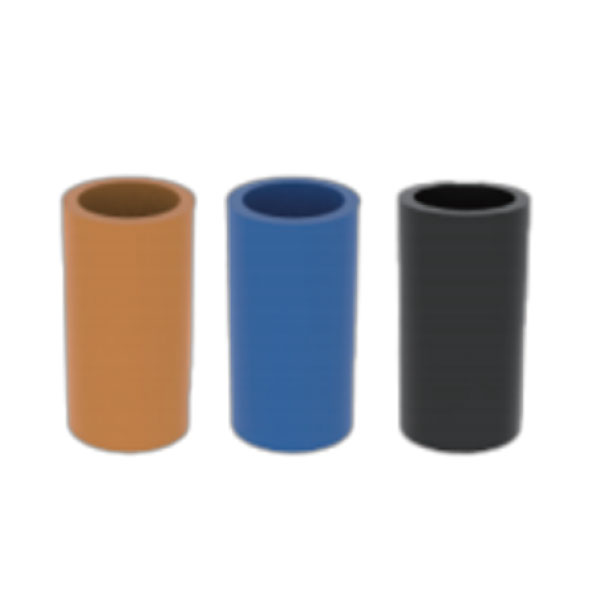

    Resin shaft ring Standard · Size specified/outside diameter selectedTexture map

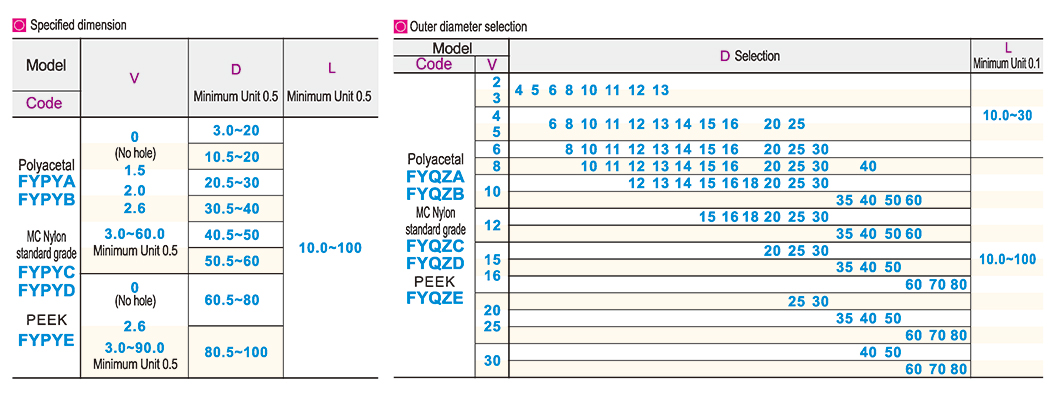

    选型表

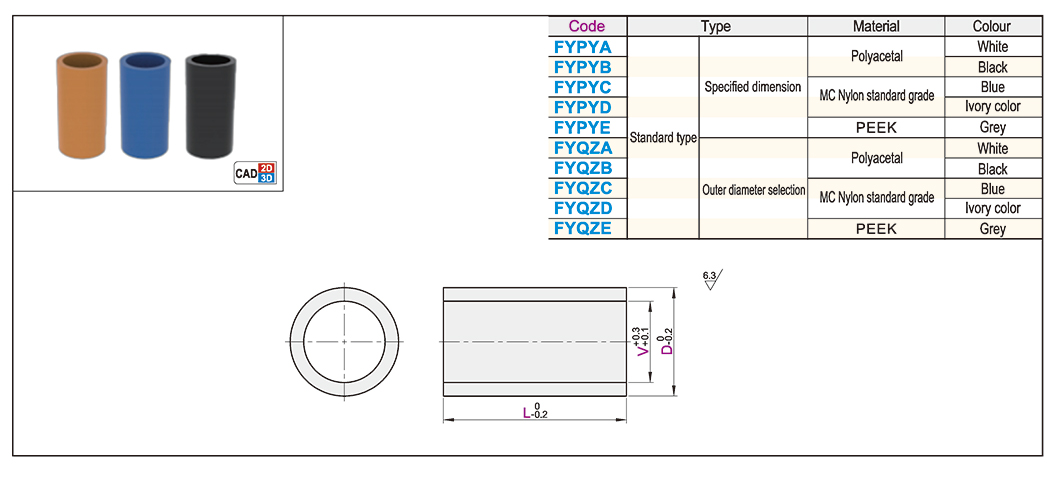

    Resin shaft ring Standard · Size specified/outside diameter selectedParametric diagram1
  • No picture
