CLASSIFICATION

Home page
/
Mechanical standard parts
/
pivot
/

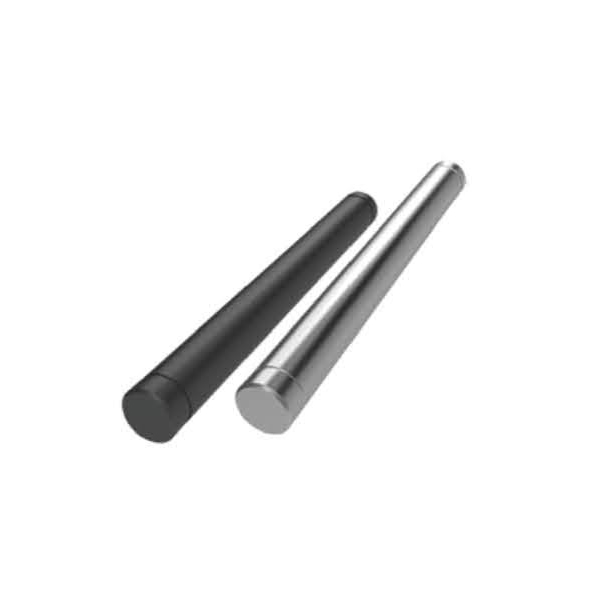

Rotary shaft straight bar with retaining ring groove

Rotary shaft straight bar with retaining ring groove

Conditional screening:
pivot
Straight rod type
Shaft end is not machined
Trough type with retaining ring
Parameter selection：
D tolerance
Please select
g6 h7 h9
material
Please select
S45C SUS304 SCM435
hardness
Please select
28~33HRC
Surface treatment
Please select
nigrescence No electrolytic nickel plating There is no
Product model：
Code
Please select
NADAH NADAJ NADAK NADAW NADAX NADBH NADBJ NADBK NADCJ NADCK NADCH
D
Please select
2 2.5 3 4 5 6 8 10 12 13 15 16 17 18 20 22 25 30 35 40 50
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram
    Rotary shaft straight bar with retaining ring grooveTexture map

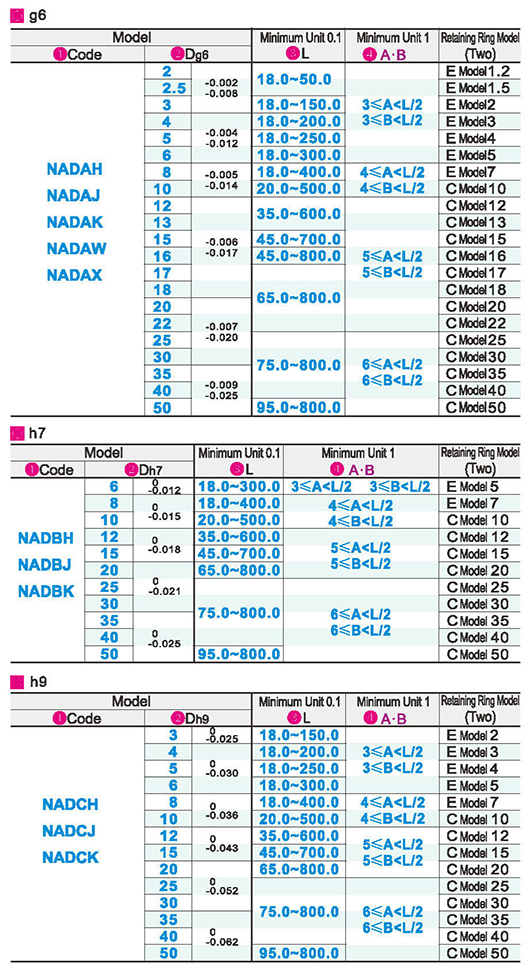

    选型表

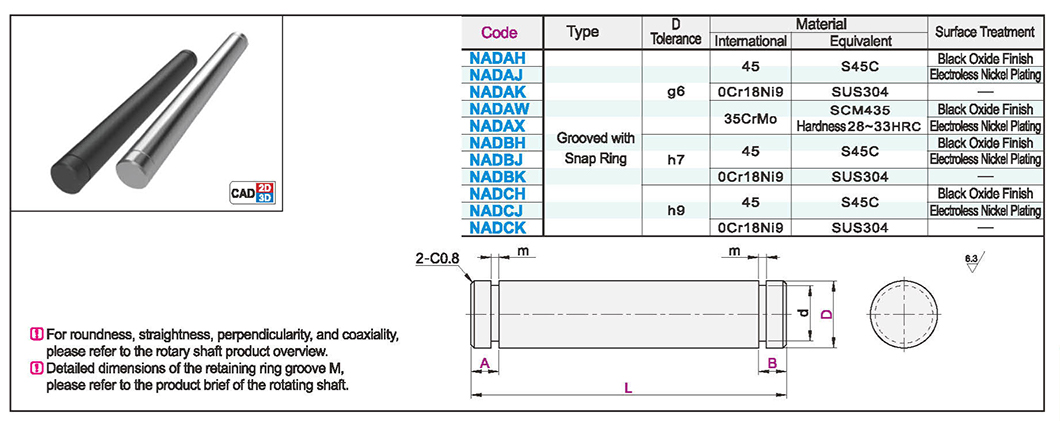

    Rotary shaft straight bar with retaining ring grooveParametric diagram1

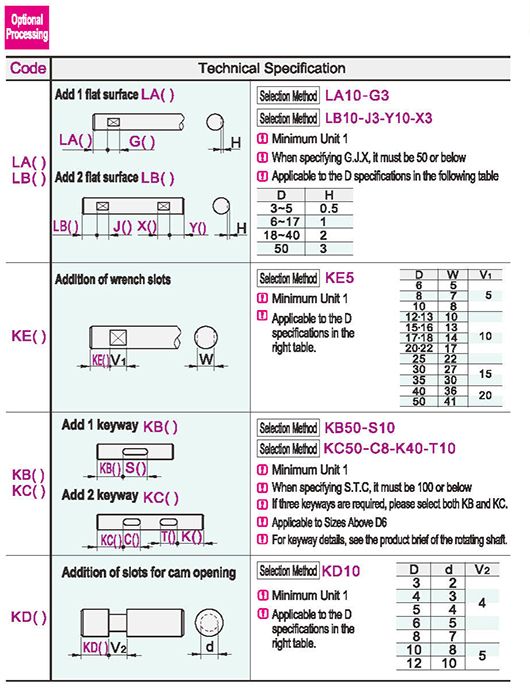

  • Optional parameter diagram
  • No picture
