Shaft straight rod type internal thread type keyway type at both ends

Conditional screening:
pivot
With keyway type
Parameter selection:
D tolerance
Please select
g6 h7 h9
material
Please select
S45C SUS304
Surface treatment
Please select
nigrescence There is no No electrolytic nickel plating
Product model:
Code
Please select
NALAH NALAJ NALAK NALBH NALBJ NALBK NALCH NALCJ
D
Please select
6 8 10 12 13 15 16 17 18 20 22 25 30 35 40 50
M
Please select
3 4 5 6 8 10 12 16 20 24 30
N
Please select
3 4 5 6 8 10 12 16 20 24 30
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • Commodity evaluation
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

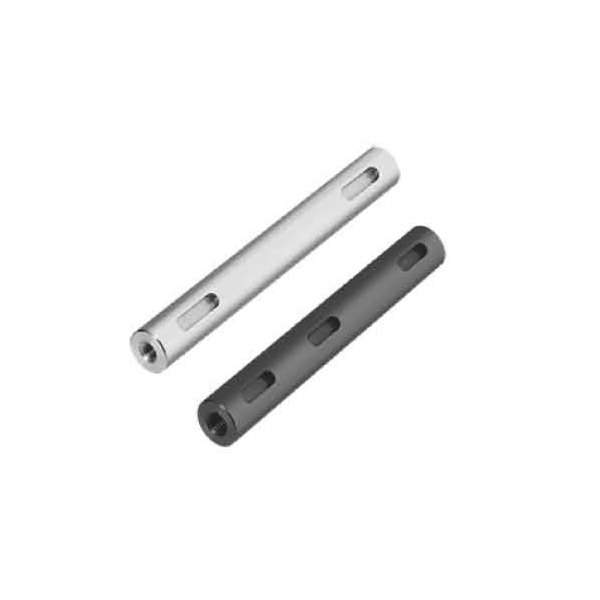

    Shaft straight rod type internal thread type keyway type at both endsTexture map
    选型表

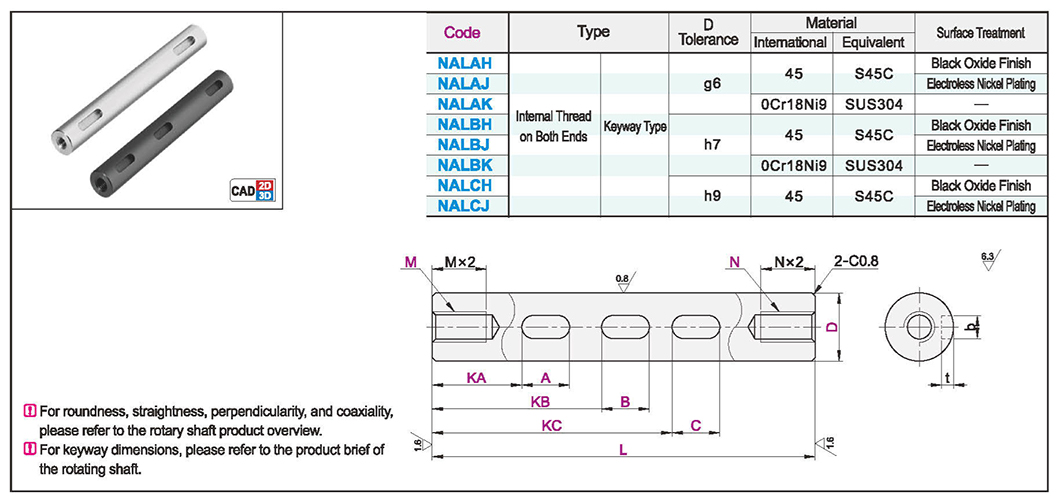

    Shaft straight rod type internal thread type keyway type at both endsParametric diagram1

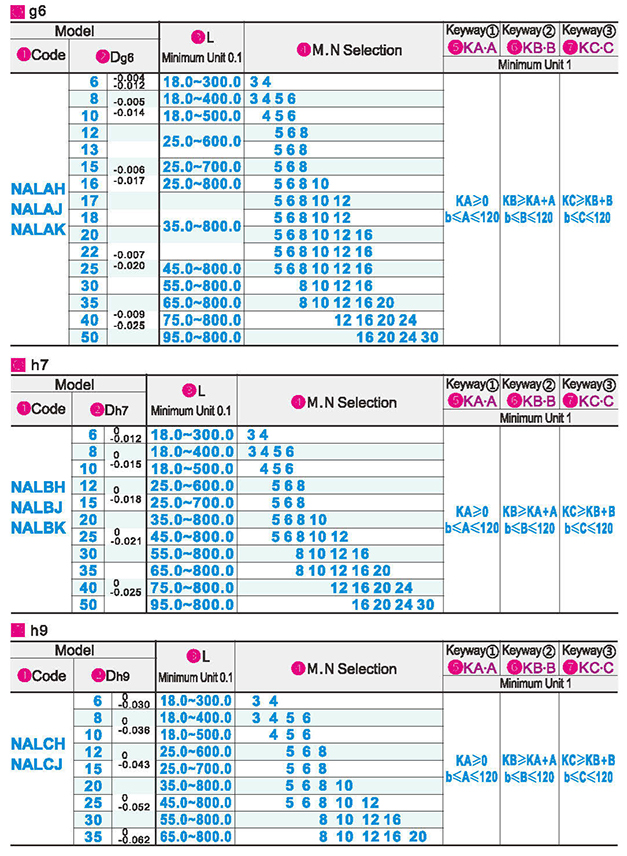

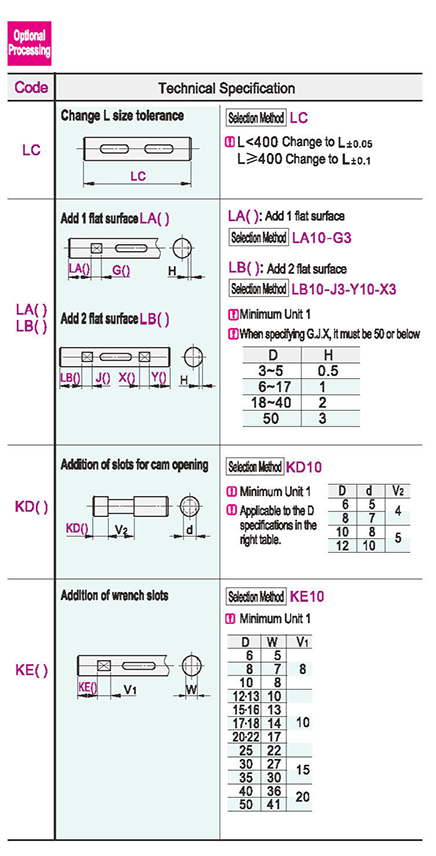

  • Optional parameter diagram
  • No picture
