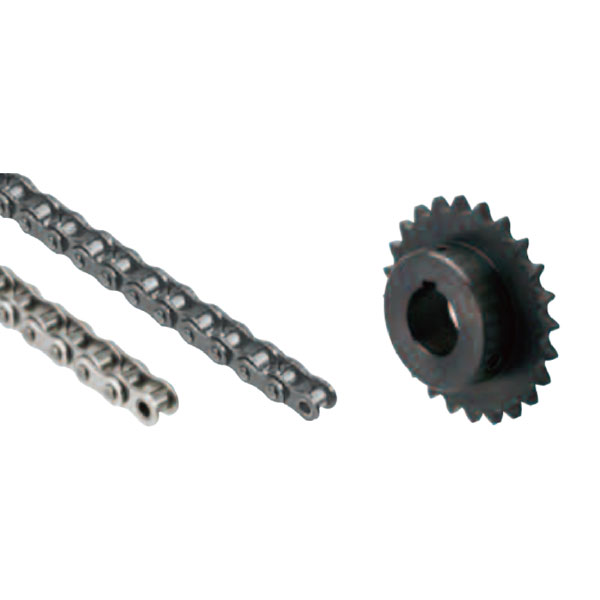

Sprocket/Chain 35 Series (06C)

Conditional screening:
35 series
9.525
Parameter selection:
Sprocket/chain selection
Please select
Sprocket wheel Chain
Sprocket material
Please select
S45C SUS304
Heat treatment
Please select
Top frequency -
Surface treatment
Please select
nigrescence -
Chain material
Please select
steel Stainless steel
Product model:
Code
Please select
ECDAA-35 ECDAB-35 EDCDA-35 EDCDB-35
Number of teeth
Please select
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 30 32 34 35 36 38 40
D
Please select
10 12 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38
Pitch number
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

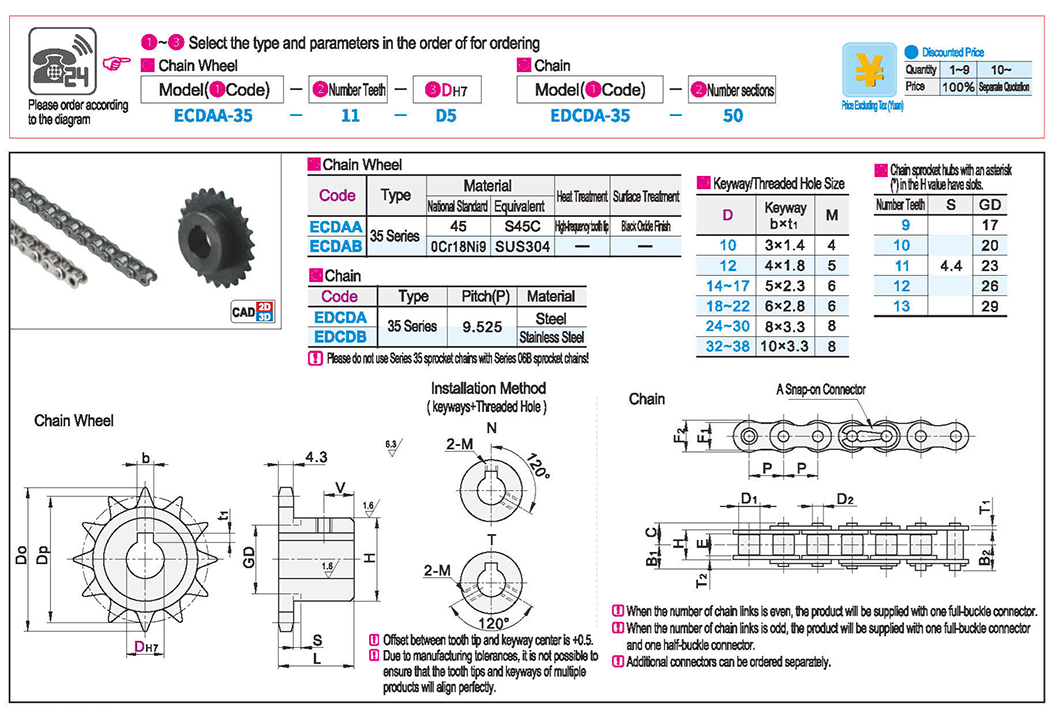

    Sprocket/Chain 35 Series (06C)Texture map
    ecd

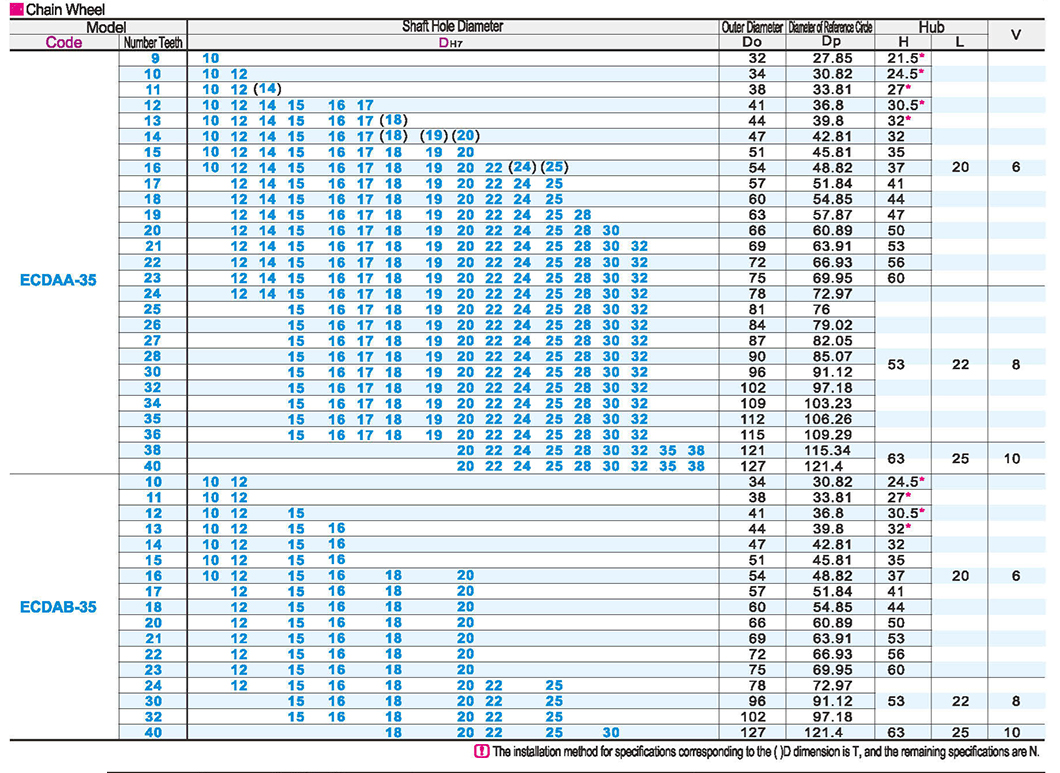

    Sprocket/Chain 35 Series (06C)Parametric diagram1
  • No picture
