Standard spur gear module 0.5 Pressure Angle 20°

Standard spur gear module 0.5 Pressure Angle 20°

Parameter selection：
material
Please select
S45C SUS304
Surface treatment
Please select
- nigrescence
Tooth surface hardness
Please select
-
Shaft hole shape
Please select
Screw locking type Round pass
Product model：
Code
Please select
EAEEP EAEDP EAEDO EAEDR EAEEO EAEER
module
Please select
0.5
Number of teeth
Please select
20 24 25 26 30 32 35 36 40 42 45 48 50 52 60 70 80 100 120
B
Please select
2 3
Gear shape
Please select
A B
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

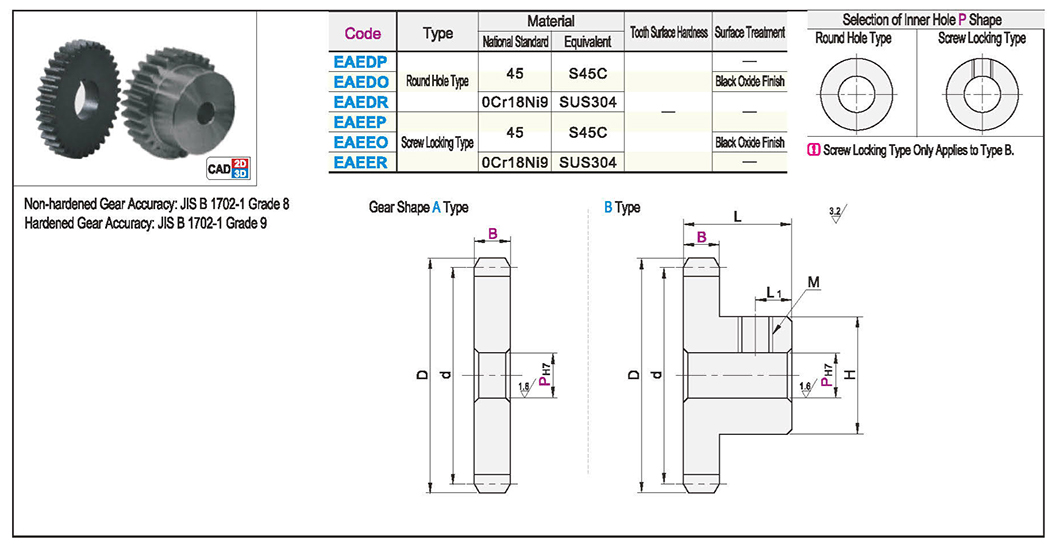

    Parametric diagram

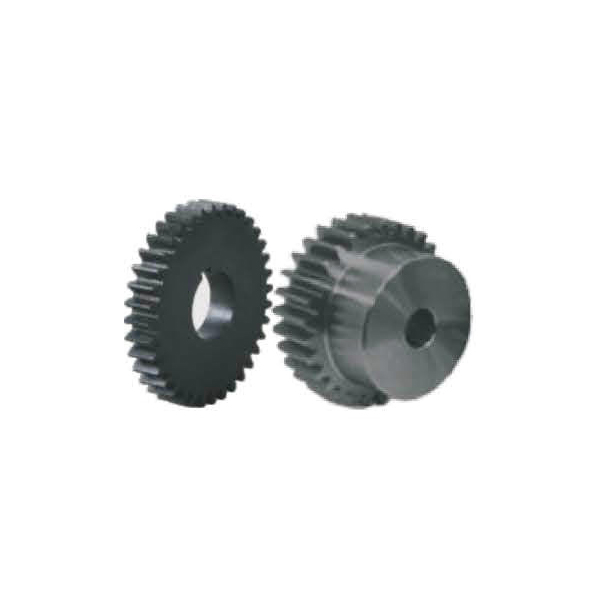

    Standard spur gear module 0.5 Pressure Angle 20°Texture map
    EAE

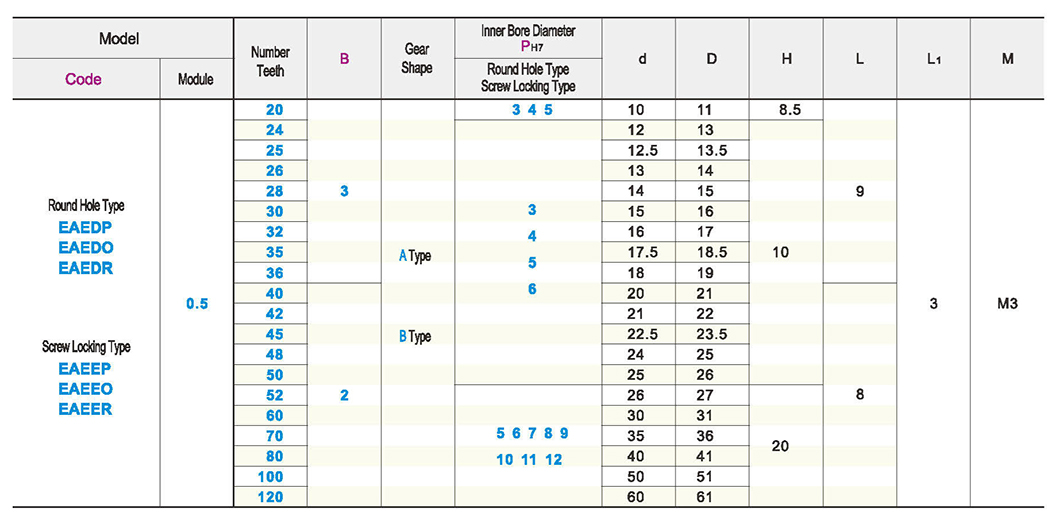

    Standard spur gear module 0.5 Pressure Angle 20°Parametric diagram1

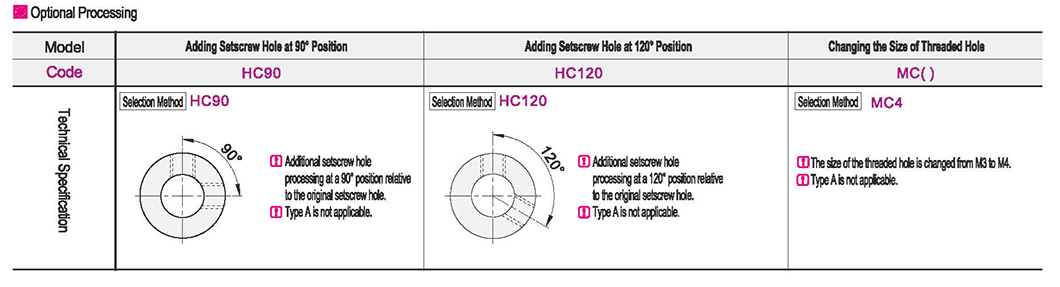

  • Optional parameter diagram
  • No picture
