Step locating pin standard type

Conditional screening:
merchandize
Normal form
Step parallel pin
Parameter selection:
material
Please select
SUJ2 SUS304 SUS440C
allowance
Please select
One end is p6 and the other end is h7 One end is p6 and the other end is g6
Product model:
Code
Please select
UXHAG UXHAU UXHAF UXIAG UXIAU UXIAF
D
Please select
3 4 5 6 8 10 12
specification
Please select
803 804 805 1003 1005 1007 1206 1510 2013 1008 1205 1208 1508 1512 1812 2013 2516 3019 4025
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

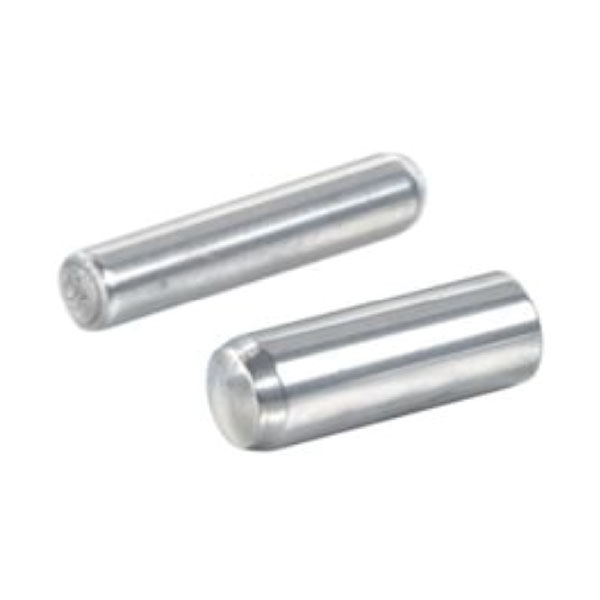

    Step locating pin standard typeTexture map

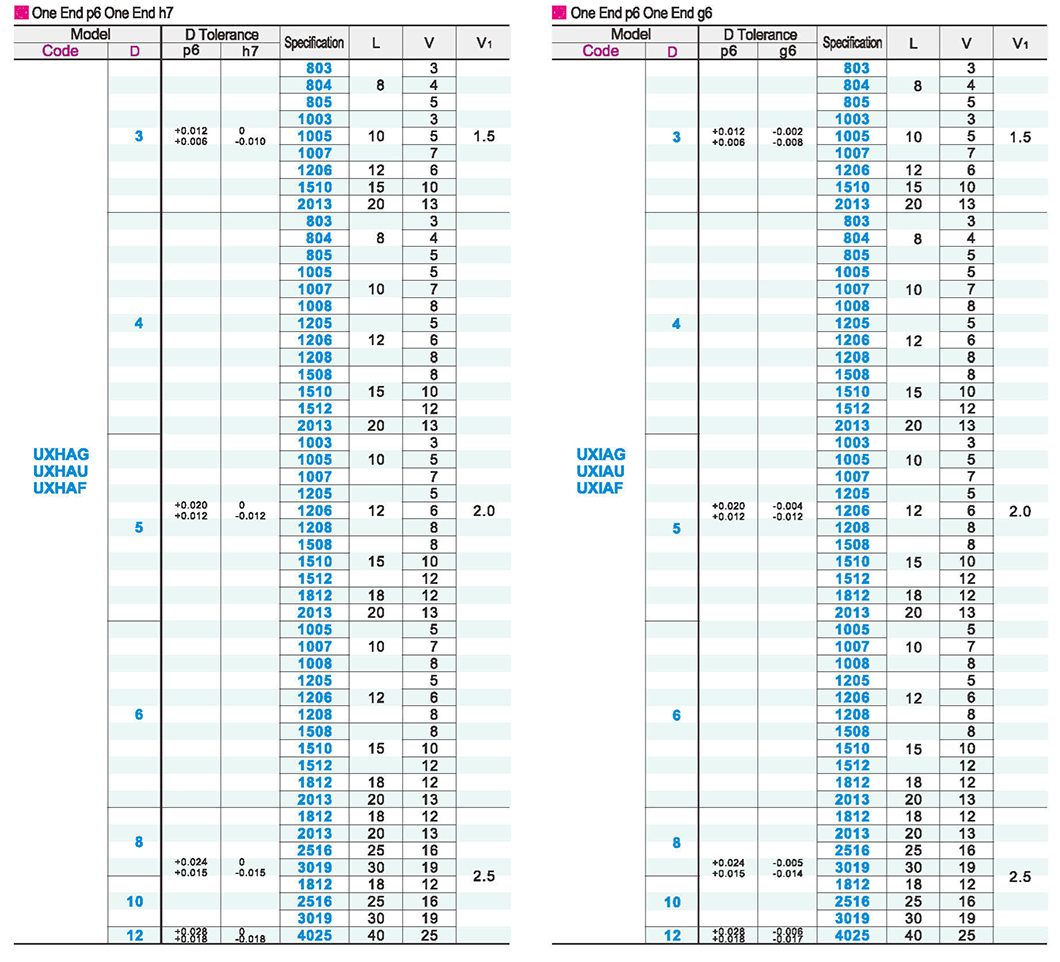

    选型表

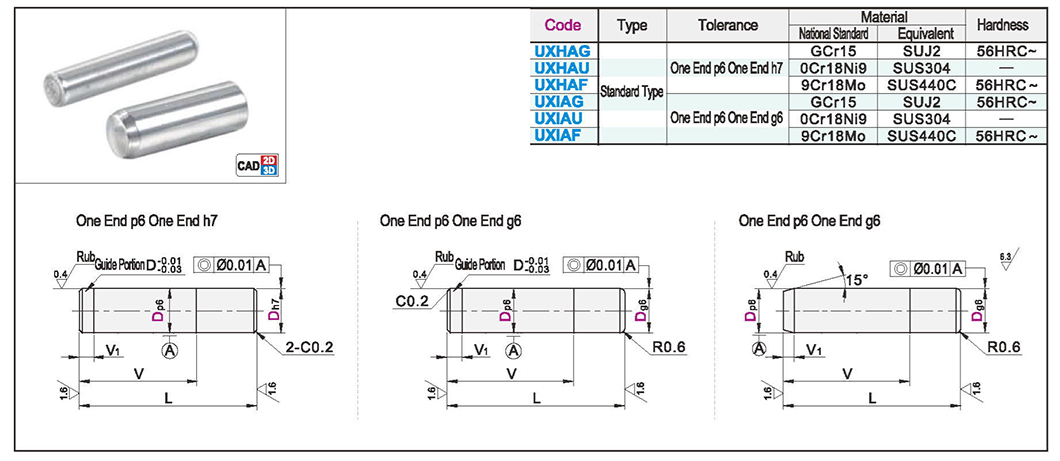

    Step locating pin standard typeParametric diagram1
  • No picture
