Straight rod type negative tolerance positioning pin standard type/one end R type one end cone Angle type

Conditional screening:
merchandize
Straight rod type dowel
Parameter selection:
type
Please select
Normal form One end is R-shaped and one end is cone-shaped
material
Please select
SUJ2 SUS304 SUS440C
allowance
Please select
h7 g6
Product model:
Code
Please select
UXCAG UXCAU UXCAF UXCBG UXCBU UXCDG UXCDU UXCEG UXCEU UXCEF
D
Please select
1 1.5 2 2.5 3 4 5 6 8 10
L
Please select
5 6 8 10 12 15 18 20 25 30 35 40 45 50 55 60
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview
    Texture map
    disassemble
    Parametric diagram

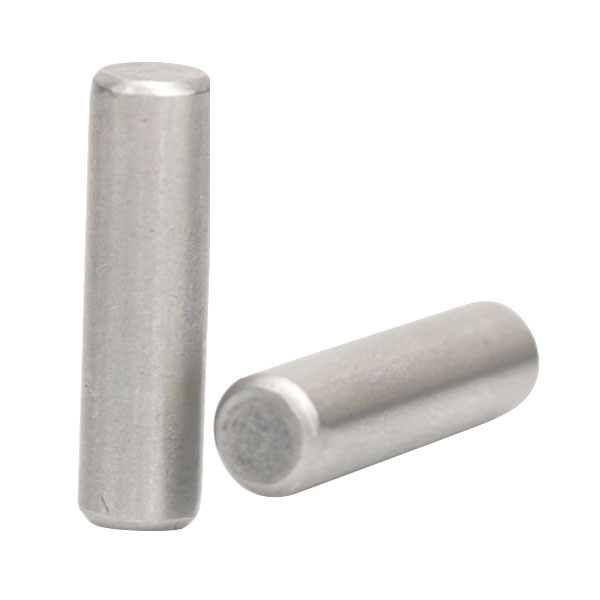

    Straight rod type negative tolerance positioning pin standard type/one end R type one end cone Angle typeTexture map
    选型表

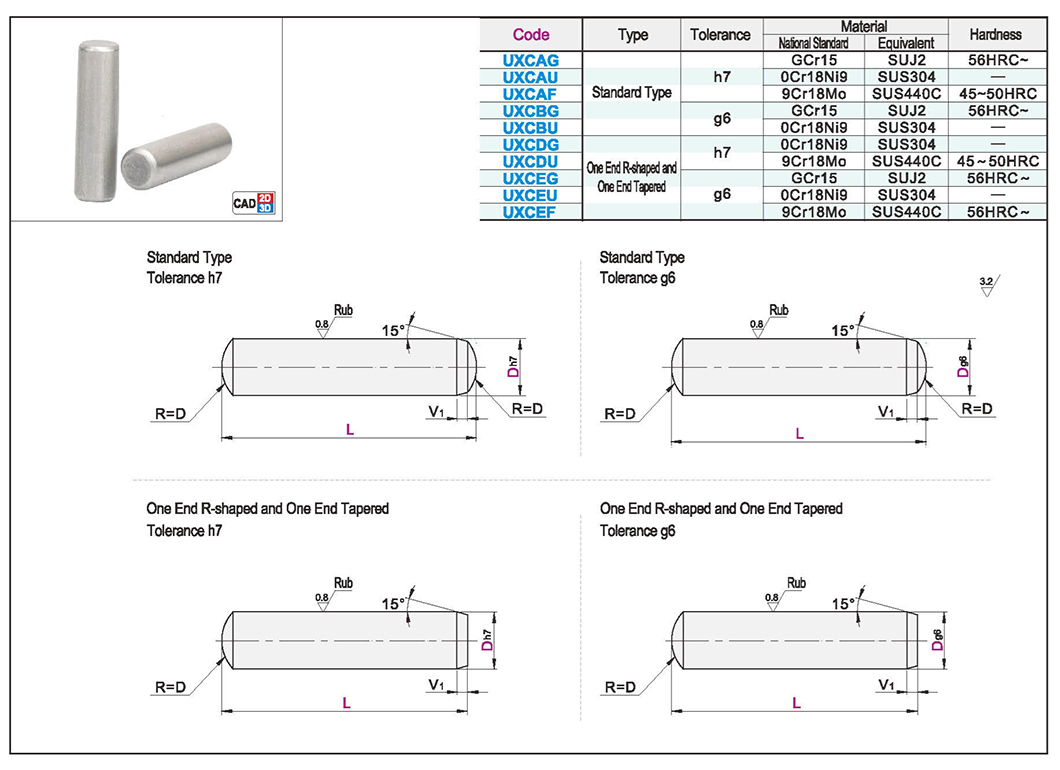

    Straight rod type negative tolerance positioning pin standard type/one end R type one end cone Angle typeParametric diagram1
