Straight rod type positive tolerance positioning pin end internal thread type Standard type/with vent groove type/economy type

Conditional screening:
merchandize
Straight rod type dowel
Parameter selection:
type
Please select
One end internal thread standard type One end internal thread with vent groove type Economy with one end internal thread
material
Please select
SUJ2 SUS304 SUS440C S45C
allowance
Please select
p6 / + 0.010 + 0.005 m6
Product model:
Code
Please select
UXBGG UXBGU UXBGF UXBHG UXBHU UXBHF UXBJG UXBJU UXBKG UXBKU UXBLC
D
Please select
5 6 8 10 12 13 16 20
L
Please select
10 15 20 25 30 35 40 45 50 60 70 80
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • profile
  • 3DModel preview

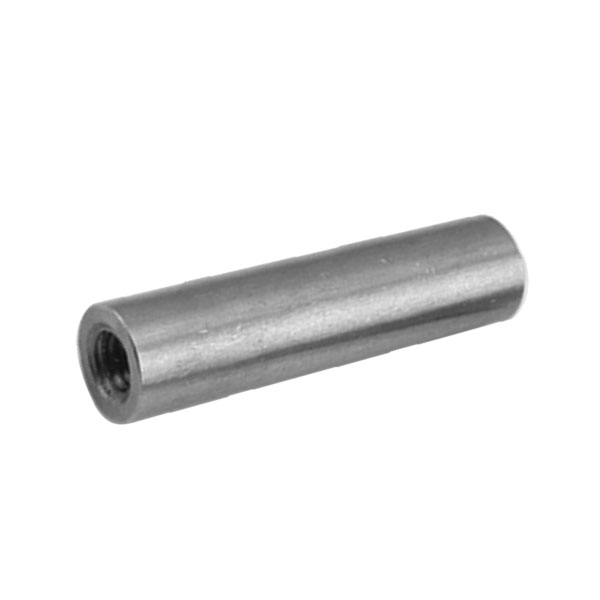

    Texture map
    disassemble

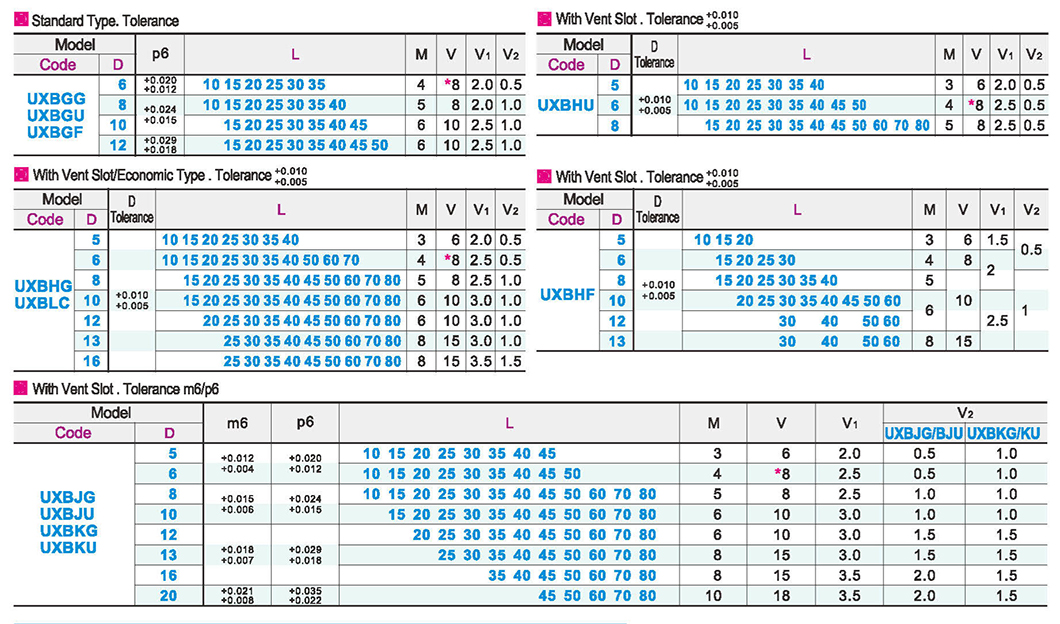

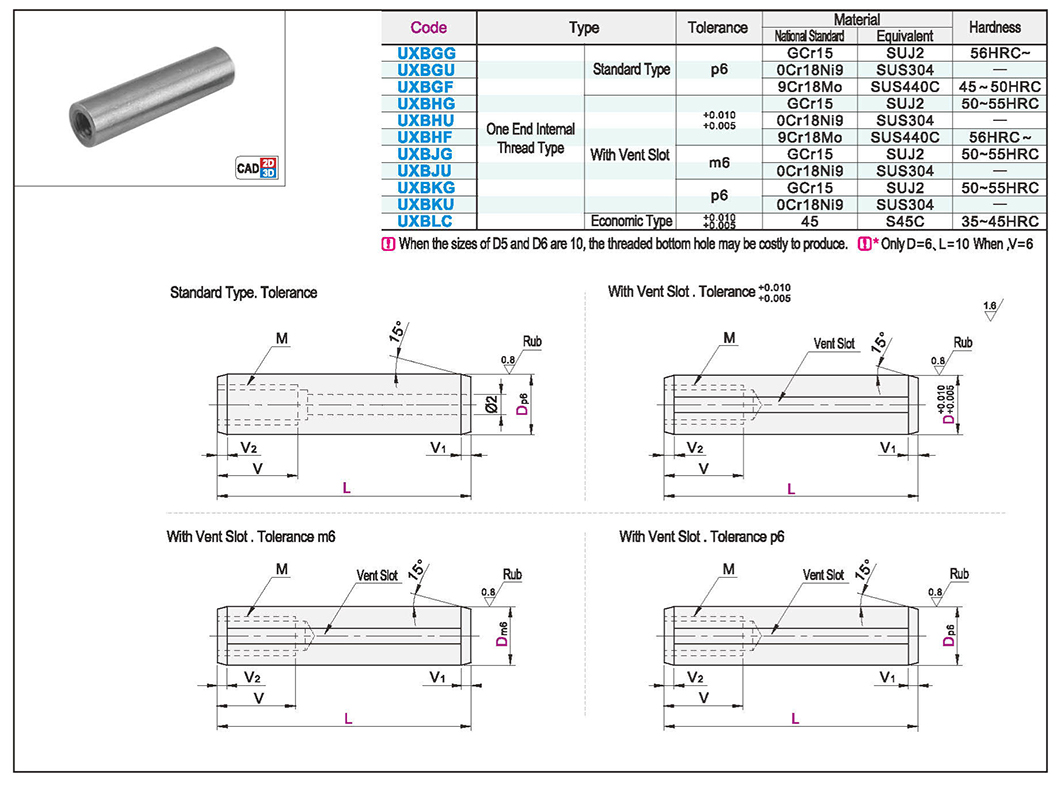

    Parametric diagram
    Straight rod type positive tolerance positioning pin end internal thread type Standard type/with vent groove type/economy typeTexture map
    选型表
    Straight rod type positive tolerance positioning pin end internal thread type Standard type/with vent groove type/economy typeParametric diagram1
