Mechanical standard parts
/
Cantilever pin/hinge pin
/
Type for overhang pin tensioning wheel hexagonal type with retainer groove type Standard type/step type

Type for overhang pin tensioning wheel hexagonal type with retainer groove type Standard type/step type

Conditional screening:
Suspension pin for tension wheel
Male thread
Retainer groove
Parameter selection：
appearance
Please select
Hexagonal type The steps are hexagonal
Size selection
Please select
Fixed thread length type Thread length specified type
material
Please select
S45C SUS304
Surface treatment
Please select
No electrolytic nickel plating nigrescence -
Product model：
Code
Please select
NSACJ NSACH NSACK NSADH NSADJ NSADK NSBCH NSBCJ NSBCK NSBDH NSBDJ NSBDK
specification
Please select
6 8 10 12 13 15 16 17 18 20 20A 22 22A 25 25A 30 30A
D
Please select
6 8 10 12 13 15 16 17 18 20 22 25 30
Generated type：
Complete the selection to generate the model
If there is non-standard customization：Please contact customer service！

Please select or complete the model parameters to generate the product model！

--
Delivery days start the following day，Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder：Different products can be entered in different quantities to obtain corresponding discounts！
  • Product details
  • Commodity evaluation
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

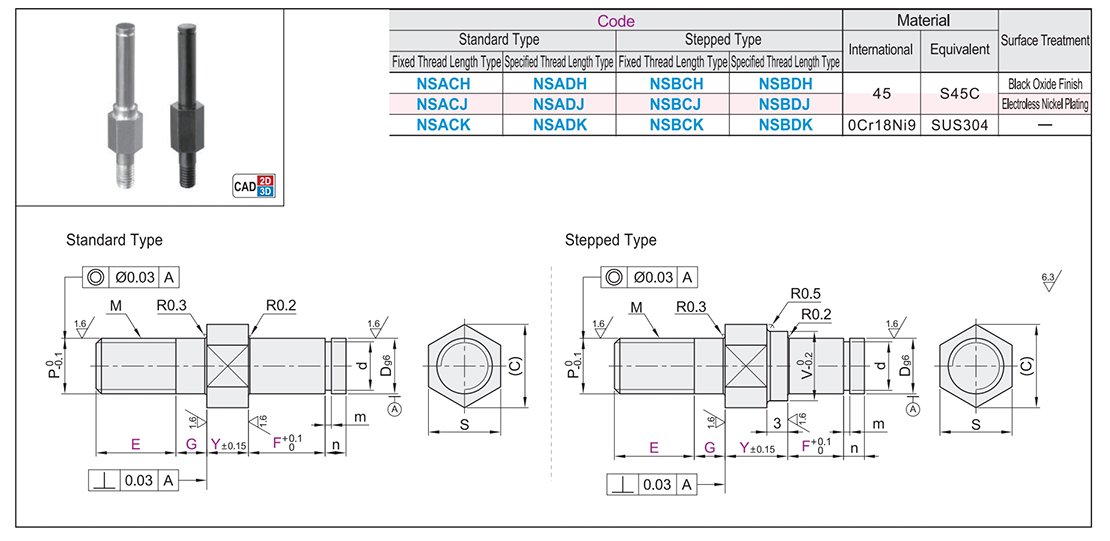

    Parametric diagram

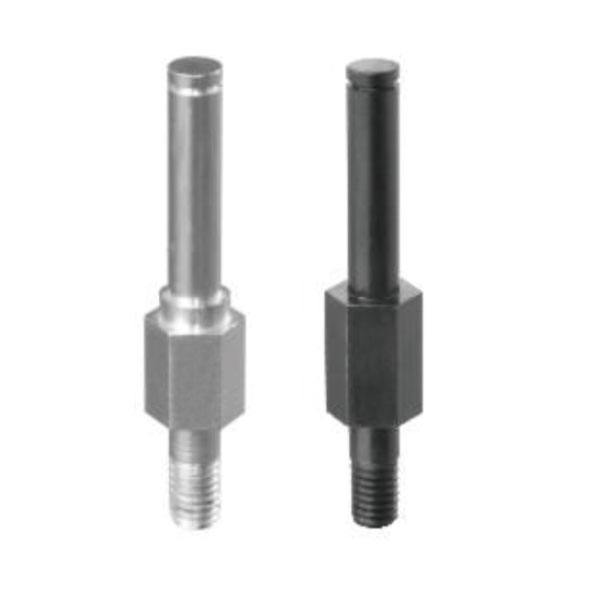

    Type for overhang pin tensioning wheel hexagonal type with retainer groove type Standard type/step typeTexture map
    选型表

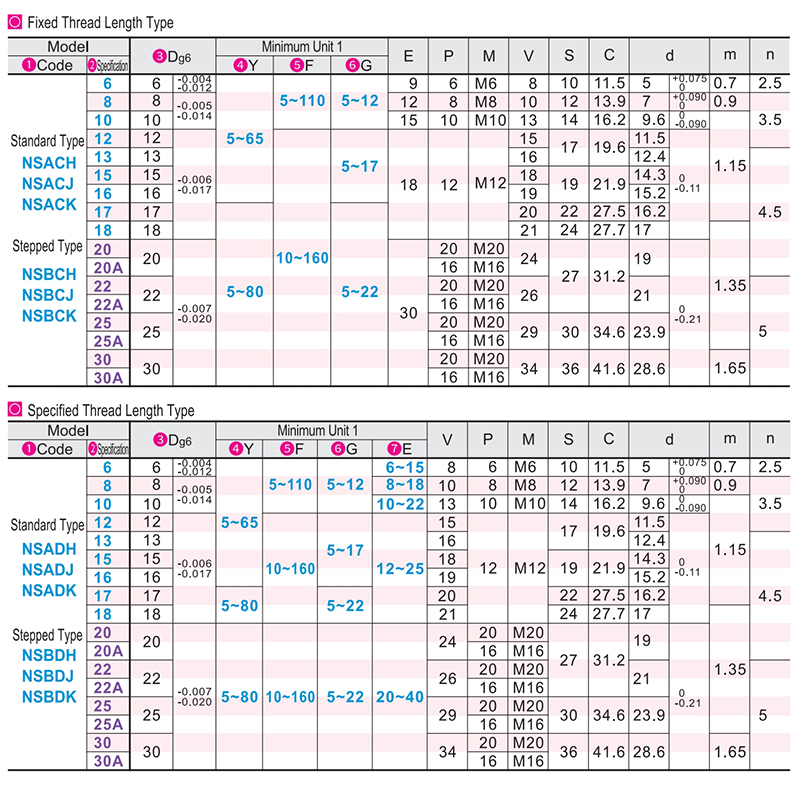

    Type for overhang pin tensioning wheel hexagonal type with retainer groove type Standard type/step typeParametric diagram1
    选型表

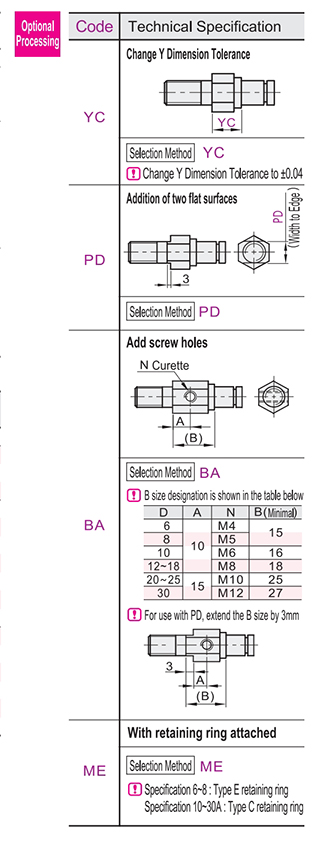

    • Optional parameter diagram
    • No picture
    • No video application is available for this model
