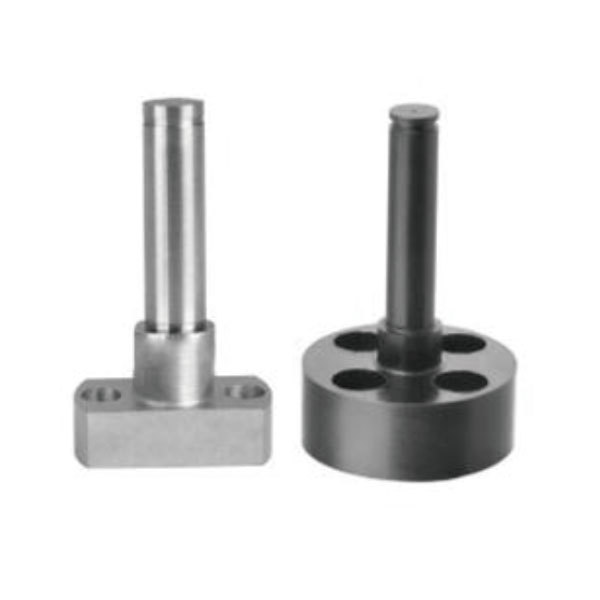

Wall pin flange type with retaining ring groove type

Conditional screening:
Flange hanging pin
counterbore
Retainer groove
Parameter selection:
appearance
Please select
Round flange Opposite flange
material
Please select
S45C SUS304
Surface treatment
Please select
nigrescence No electrolytic nickel plating -
Product model:
Code
Please select
NRAFH NRAFJ NRAFK NRAGH NRAGJ NRAGK
specification
Please select
6 6A 8 8A 10 10A 12 13 15 16 17 18 20 22 25 30 35 40 50
D
Please select
6 8 10 12 13 15 16 17 18 20 22 25 30 35 40 50
Generated type:
Complete the selection to generate the model
If there is non-standard customization:Please contact customer service!

Please select or complete the model parameters to generate the product model!

--
Delivery days start the following day,Sundays and national holidays are excluded
Purchase quantity
- +
(PCS)Warm reminder:Different products can be entered in different quantities to obtain corresponding discounts!
  • Product details
  • Machining parameter diagram
  • profile
  • 3DModel preview
    Texture map
    disassemble

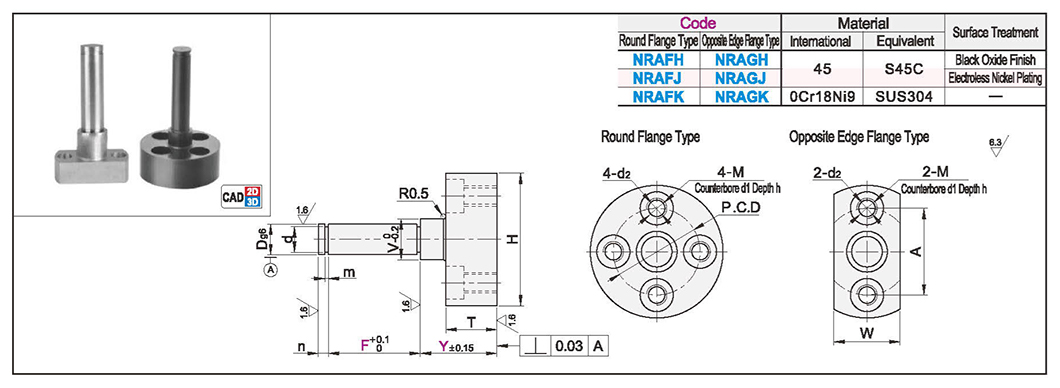

    Parametric diagram
    Wall pin flange type with retaining ring groove typeTexture map

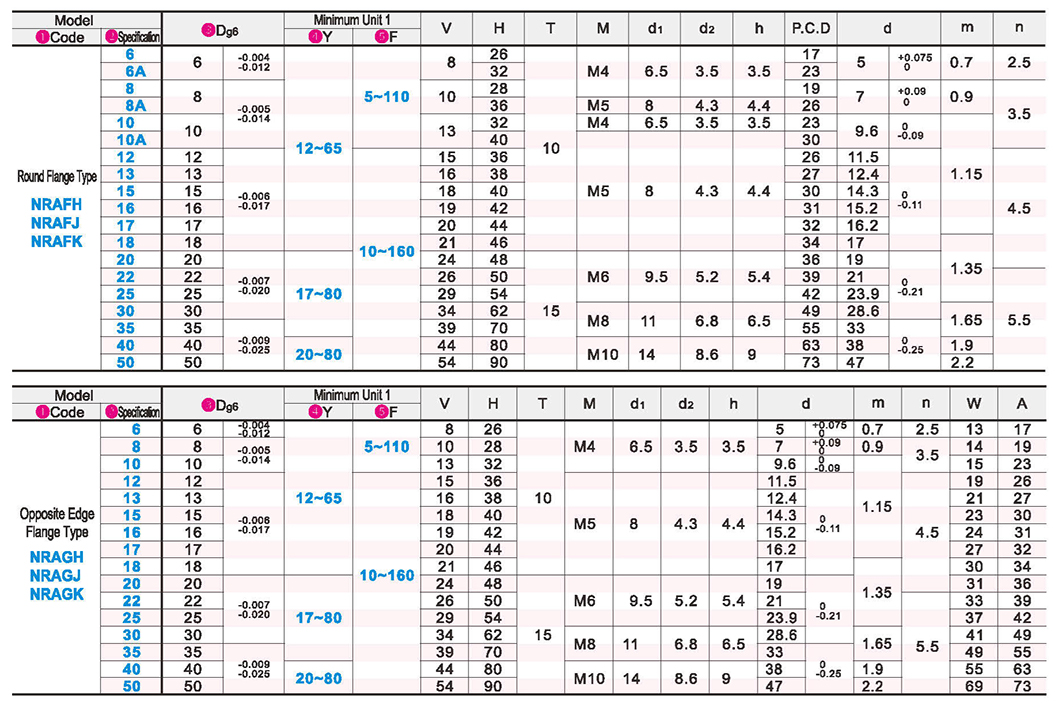

    选型表
    Wall pin flange type with retaining ring groove typeParametric diagram1

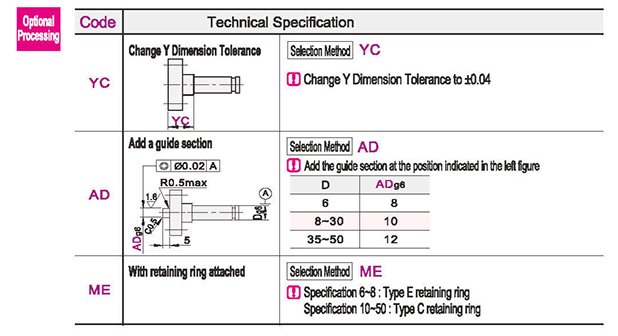

  • Optional parameter diagram
  • No picture
